Apply NowRhino TW120

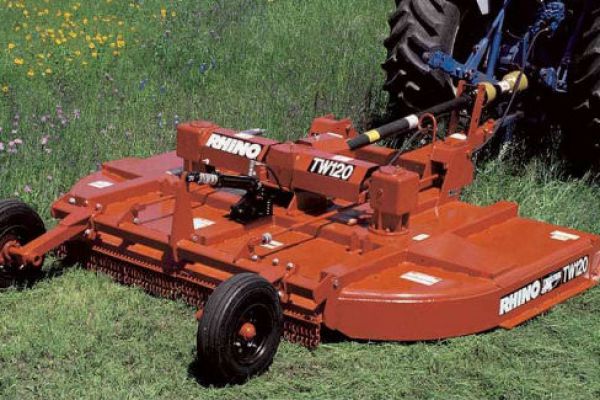

TW Series (Heavy Duty) TW120
The TW120 cuts a 120" swath of material. The center gearbox, rated at 120 HP, transfers power to the 100 HP outboard gearboxes. Torque dampeners on both sides of the center gearbox help minimize drive-line and gearbox damage caused from sudden shock-loads. Massive 2-3/8" diameter output shafts in the outboard gearboxes... + Read More
Features
- Slip-Clutch Protection
- Torque Dampeners
- CAT IV Driveline
- 10 Gauge Deck
- 1/4" Side Skirts
- CAT 2 & 3 Quick Hitch, Pull-Type
Specs
| Model | TW120 |
| Cutting Width | 120'' |
| Overall Width | 127'' |
| Overall Length | 116'' Lift 156'' Pull |
| Cutting Height | 2'' - 12'' |
| Height Adjustment | Ratchet Jack - Lift Hydraulic Cylinder - Pull |
| Jack Stand | Standard - Pull |
| Hitch | Cat 2 & 3 QH, Pull |
| Blade Carrier | Pan |
| Blades | 1/2'' x 4'' Updraft |
| Blade OverLap | 4'' |
| HP Required (Min.) | 60 Lift 50 Pull |
| Gearbox Rating - Center | 120 HP |
| Gearbox Rating - Outboard | 100 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2 3/8'' |
| Blade Tip Speed - 540 RPM | 15,423 FPM |
| Blade Tip Speed - 1000 RPM | 16,166 FPM |
| Axle Protection | Spring Shock Absorber - Pull |
| Cutting Capacity (Max) | 2'' |
| Driveline Size | CAT 4 w/ 1 3/8'' PTO Yoke |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 10 Ga |
| Side Skirt | 1/4'' x 10'' |
| Tires & Wheels | 2 Laminated - Lift 2 Foam Filled Aircraft - Pull |
| Safety Tow Chain | Std - Pull |
| Light Kit | |
| Weight (Approx) | 1955 lbs. - Lift |
| 2,321 lbs. - Pull |
