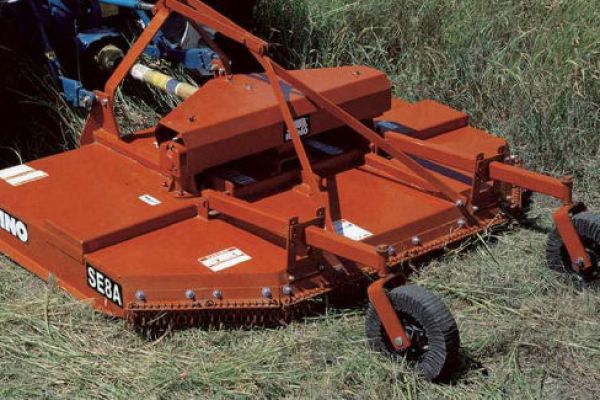

SE Series (Medium Duty) SE8A
Overview:
The streamlined, close-coupled design allows economical operation on tractors as small as 30 horsepower on the SE8A and 45 horsepower on the SE10A. The 100 HP center gearbox and 70 HP outboard gearboxes have enhanced protection from a slip clutch on the main driveline and torque dampeners on the side driveshafts. Pan b... + Read More
Features
The lift-type SE8A features a CAT II hitch and is designed for use on 540 RPM tractors as small as 45 HP (with adequate front weights). Designed to mow a 94" swath, updraft blades and a 4" blade overlap help ensure a clean cut. The 10 gauge deck and 8-1/2" side skirts are reinforced to help provide dependable mainframe strength.
The pull-type SE8A requires only a 30 HP tractor (min.) for economical operation. An adjustable control rod maintains the proper adjustment front-to-rear for a smooth cut. Laminated tailwheels with greaseable tapered roller bearings are standard equipment.
- Cross-braced pan blade carriers
- Quick hitch compatible
- Close-coupled design
- Torque dampeners on side drive-lines
Specifications
| Model | SE8A |
| Cutting Width | 94'' |
| Overall Width | 99 3/8'' |
| Overall Length | 103'' |
| Cutting Height (Min) | 1 1/4'' - 12'' |
| Height Adjustment | Ratchet Jack - Lift Cylinder - Pull, Semi-Mt |
| Jack Stand | Std - Pull |
| Hitch | CAT 2, Pull, or Semi-Mt |
| Blade Carrier | Pan |
| Blades | .401'' x 3'' Updraft |
| Blade Overlap | 4'' |
| HP Required | 45 Lift |
| 30 Pull | |
| Gearbox Rating - Center | 100 HP |
| Gearbox Rating - Outboard | 70 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2'' |
| Blade tip Speed (FPM) | 12,315 |
| Cutting Capacity | 1'' |
| Driveline Size | CAT 4 |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 10 Ga. |
| Side Skirt | 10 Ga. X 8 1/2'' |
| Tire and Wheel | Laminated 4 x 8 |
| Safety Tow Chain | Std - Pull |
