SE Series (Medium Duty) SE10A
Overview:
The streamlined, close-coupled design allows economical operation on tractors as small as 30 horsepower on the SE8A and 45 horsepower on the SE10A. The 100 HP center gearbox and 70 HP outboard gearboxes have enhanced protection from a slip clutch on the main driveline and torque dampeners on the side driveshafts. Pan b... + Read More
Features

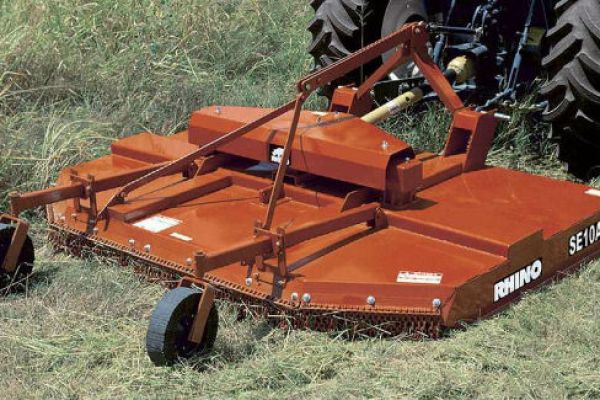

The lift-type SE10A mows a 118" swath and is available as a 540 or 1000 RPM unit. The lift-type features a rugged CAT II-III Q.H. for easier unit “hook-up.” The lift-type can be operated on 55 HP (min.) tractors (with adequate front weights). The side skirts are 9-1/2" deep to help handle large volumes of material and along with the 10 gauge deck are reinforced to provide troublefree performance.

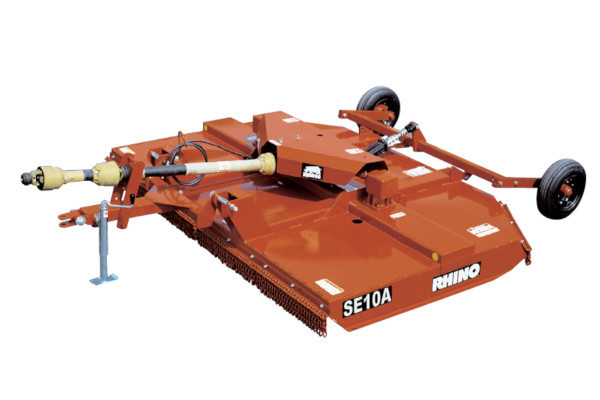

The pull-type SE10A requires only a 45 HP (min.) tractor for economical, wide-cut mowing. A hydraulic cylinder or ratchet lift screw is available for raising and lowering the mower. A spring shock absorber is optional to help cushion shock-loads to the mainframe when operating in rough terrain. (Unit shown with optional chain guards. Deflectors are standard.)
- Cross-braced pan blade carriers
- Quick hitch compatible
- Close-coupled design
- Torque dampeners on side drive-lines
Specifications
| Model | SE10A |
| Cutting Width | 118'' |
| Overall Width | 124 3/8'' |
| Overall Length | 116'' |
| Cutting Height (Min) | 1 1/4''-12'' |
| Height Adjustment | Ratchet Jack - Lift Cylinder - Pull, Semi-Mt |
| Jack Stand | Std - Pull |
| Hitch | CAT 2 & 3 QH - Lift Semi-Mount, Pull |
| Blade Carrier | Pan |
| Blades | .401'' x 3'' Updraft |
| Blade Overlap | 4'' |
| HP Required | 55 Lift |
| 45 Pull | |
| Gearbox Rating - Center | 100 HP |
| Gearbox Rating - Outboard | 70 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2'' |
| Blade tip Speed (FPM) | 15,339 |
| Cutting Capacity | 1'' |
| Driveline Size | CAT 4 |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 10 Ga. |
| Side Skirt | 10 Ga. X 9 1/2'' |
| Tire and Wheel | See Note |
| Safety Tow Chain | Std - Pull |
