Specializing in farm equipment sales, parts, and service.

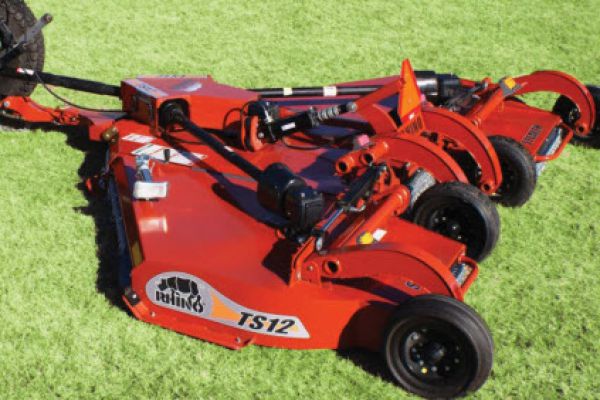

Rhino TS12 Stealth

Double tap to zoom



Features

  • Designed for Tractors with 35 - 50 PTO HP.
  • Short Turning Radius for Cutting Small Areas.
  • 1-1/2” Cutting Capacity.
  • Low Tongue Weight for Smaller Horsepower Tractors.
  • Unique “Wing-Bar” Blade Carrier Protects the Gearbox Output Shaft with Minimal Weight.
  • Equal-Angle, Fully Pivoting Tongue and Direct Acting Suspension System for Uneven Terrain.
  • Smooth Decks for Easy Cleaning and Unobstructed Underside for Airflow Through the High-Volume Cutting Chamber.
  • Provides Dramatic Reduction in Mowing Time.
  • Large Center Skid Shoes and Tapered Wing Shoes Provide Anti-Scalping Protection.
  • Chain Guards Included for Protection.

Specifications

Model TS12 STEALTH
Cutting Width 144''
Transport Width 97''
Transport Height 65''
Overall Width 155''
Overall Length 148''
Cutting Height * 2'' - 12''
Self-Leveling Height Adjustment Hydraulic Cylinder
Jack Stand Std
Hitch Pull-Swivel
Blade Carrier Infinity
Blades 1/2'' x 3''
Blade Overlap 6''
HP Required 35 - 60 PTO
Gearbox Rating - Power Divider ** 160 HP
Gearbox Rating - Center & Wing ** 65 HP
Gearbox Oil (85W-140) Factory Filled
Output Shaft Diameter 1 9/16''
Blade Tip Speed - Center 540 RPM 14,504 FPM
Blade Tip Speed - Wing 540 RPM 13,925 FPM
Cutting Capacity (Max.) 1 1/2'' Diameter
Driveline Size - Main CAT 4 Equal Angle
Driveline Size - Wing CAT 3
Driveline Protection Slip Clutch
Deck Thickness - Center 10 Ga Bottom, 12 Ga Top
Deck Thickness - Wings Double 12 Ga
Side Skirt 1/4'' x 11 1/2''
Tires & Wheels (4 or 6) Foam Filled Aircraft OR Laminated Tires
Wing Lift Hydraulics Std
Wing Flex (Degrees) 88° Up / 25° Dn
Safety Tow Chain Std
LED Light Kit Std
Safety Deflectors Chain Guards
Wheel Base 126 1/4''
Tongue Weight 748 lbs
Weight (Approx) 2,750 lbs

* Cutting Height dependent on Tire Size.
** Gearbox power rating based on actual field performance.
