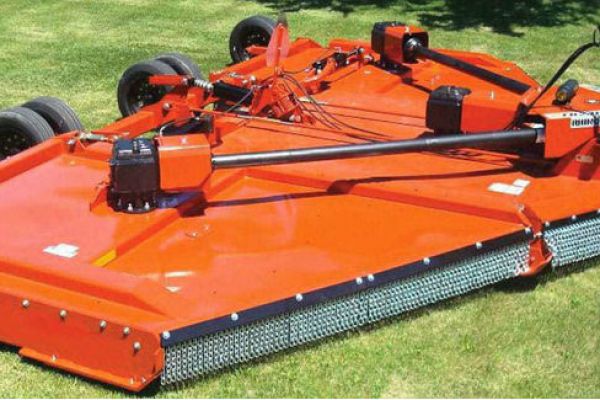

Rhino 6140

Double tap to zoom



Features

  • Available with 540 or 1000 RPM drives
  • 6140 available with right wing and counterweight
  • Three blade carrier choices for your application needs
  • Deck rings included as standard

Specifications

Model 6140
Cutting Width 162''
Transport Width 106''
Transport Height 100''
Overall Width 170''
Overall Length 216''
Cutting Height * 2'' - 16''
Height Adjustment Hydraulic Cylinder
Jack Stand Standard
Hitch Pull
Blade Carrier Wing Pan or Oval Pan
Blades 1/2'' x 4''
Blade Types Available Updraft, Flat
Blade Overlap 6''
HP Required 80 PTO
Tractor Drawbar Load
Gearbox Rating - Divider ** 250 HP
Gearbox Rating - Center & Wing ** 225 HP
Gearbox Oil (85W-140) Factory Filled
Output Shaft Diameter 3''
Blade Tip Speed (FPM) - 540 RPM 15,675 Center/ 15,703 Wing
Blade Tip Speed (FPM) - 1000 RPM 16,054 Center/ 15,804 Wing
Cut Capacity (Max) 4 1/2''
Driveline Size CAT 6 CV Main/Cat 6 Wing
Driveline Protection Slip Clutch
Deck Thickness 10 Ga. Top/Bottom
Side Skirt 1/4" x 12"
Tire and Wheel Option Laminated, Pneumatic, Foam Filled
Wing Lift Hydraulics Standard
Wing Flex (Degrees) 90° Up/22° Down
Deck Rings Standard
Safety Tow Chain Standard
Safety Deflector Single or Double Chain Guards
LED Light Kit Standard

* Cutting height dependent on tire size.
** Gearbox ratings based on field performance.
