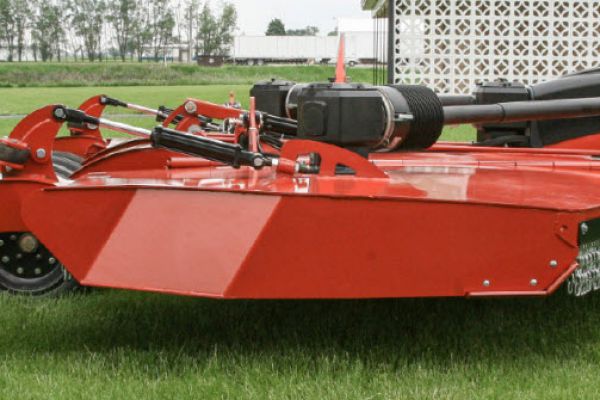

Rhino 3100

Double tap to zoom



Features

  • Low Horsepower Requirement
  • Slip-Clutch Protection
  • Hydraulic Wing Lift, Safety-Tow Chains, LED Light Kits Come Standard
  • 4 Optional Wheel Configurations

Specifications

Model 3100
Cutting Width 126''
Transport Width * 88''
Transport Height * 80''
Overall Width * 133''
Overall Length * 176''
Cutting Height * 2''-14''
Height Adjustment Hydraulic Cylinder
Jack Stand Standard
Hitch Pull
Blade Carrier Infinity
Blades 1/2'' x 4'' Parallel Lift
Blade Overlap 6''
PTO Horsepower Required 50 HP
Gearbox Rating ** - Divider 160 HP
Gearbox Rating ** - Center and Wing 110 HP
Gearbox Oil - 85W-140 Factory Filled
Output Shaft Diameter 2''
Blade Tip Speed - Center 540 RPM 14,861 FPM
Blade Tip Speed - Center 1000 RPM 15,570 FPM
Blade Tip Speed - Wing 540 RPM 14,861 FPM
Blade Tip Speed - Wing 1000 RPM 15,776 FPM
Cutting Capacity 3''
Driveline Size - Main Cat 4 CV
Driveline Size - Wing Cat 4
Driveline Protection Slip Clutch
Deck Thickness 10 GA
Side Skirt 1/4'' x 9 5/8''
Tires and Wheels See Options
Wing Lift Hydraulics Standard
Wing Flex (Degrees) 90 degrees Up/25 degrees Down
Safety Tow Chain Standard
LED Light Kit Standard
Safety Deflectors Rubber Deflectors or Chain Guard

* Dependent on Tire Size
** Gearbox Ratings Based on Field Performance
