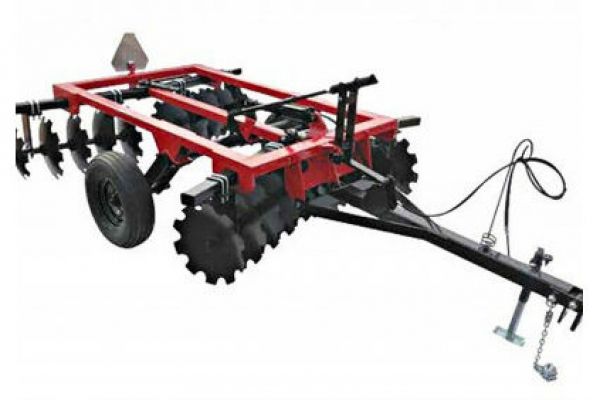

Pull-Type Compact Disc Harrows DHP10
Overview:
Triple-lip, sealed ball bearings, ensure long life!
Our Pull-Type Compact Disc Harrows come equipped with a pull-type hitch with a clevis and hole for a 1 ¼” pin. These harrows are ready to work with any tractor with 40 to 100 horsepower, and can cultivate areas from 8 ½ to 12’ wide. Each harrow has from 8 to 12 gre... + Read More
Features
- Clevis & Hole Style Hitches for Reliable, Low Maintenance, Quick Hitching.
- Greaseable, Triple-Lip, Sealed Ball Bearings, ensure long life!
- Optional 20 or 22” Blades for Jobs of any Size!
- Several Horsepower Options to Fit Farms of any Size!
Specifications
| Model | DHP10 |
| Tractor Drawbar HP | 45-100 |
| Hitch Type | Pull-Type with Clevis and Hole for 1¼'' Pin |
| Approx. Transport Width | 10'-10'' |
| Max Cultivation Width | 10'-6'' |
| Main Frame Width | 93.5'' |
| Approx. Weight Per Disc (lbs) | 84-98 |
| Disc Blade Size & Type | 20'' or 22'' Notched |
| Disc Spacing | 7.5'', 9'', or Combination |
| Disc Bearing Type | Greaseable Triple-Lip Sealed Ball Bearing |
| Number of Bearings | 12 |
| Forward Gang Angle Adjustment | 15°, 16.5°, 18°, 19.5°, 21° |
| Rear Gang Angle Adjustment | 12°, 13.5°, 15°, 16.5°, 18° |
| Hitch Frame Construction | 4'' x 4'' x ¼'' Tubing |
| Slide Frame Construction | 4'' x 4'' x ¼'' Tubing |
| Gang Arm Construction | 4'' x 4'' x ¼'' Tubing |
| Gang Axles | 1⅛''-Square High-Carbon Steel |
| Front to Rear Leveling System | Manual Crank Adjustment |
| Depth Control | Hydraulic Cylinder (3½'' x 8'' ASABE) |
| Transport Tires & Wheels | (2)-9.5L x 15 w/5-Bolt Wheels |
| Parking Jack | Standard |
| Options | Disc Scrapers, Dual-Transport Wheel Kit |
