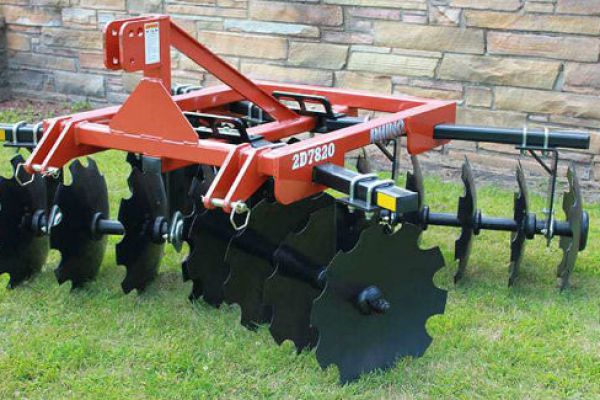

Lift-Type Compact Disc Harrows 2D96
Three classes of harrows ready for jobs of any size!
Rhino’s three classes of lift-type compact disc harrow are ready for soil jobs of every size. With working widths of 60 to 118” and power requirements anywhere from 30 to 95 horses, our lift discs are can work for all types of farmers! Rhino Harrows run discs from... + Read More
Features
- Strong Square Framing Tubes
- High Carbon Steel Axles
- CAT 1 Studded Hutches
- Horsepower Requirements for Any Tractor
Specs
| Model | 2D96 |
| Hitch | 3 pt CAT 1 & CAT 1 QH |
| Working Width | 96'' |
| Recommended HP | 65 |
| Disc Size | 20'' |
| No. of Disc Blades - 7.5'' Front & Rear | 24 |
| No. of Disc Blades - 9'' Front & Rear | 20 |
| No. of Disc Blades - 9'' Front, 7.5'' Rear | 22 |
| Weight (Lbs.) - 7.5'' Front & Rear | 984 |
| Weight (Lbs.) - 9'' Front & Rear | 815 |
| Weight (Lbs.) - 9'' Front, 7.5'' Rear | 902 |
| Weight Per Disc - 7.5'' Front & Rear | 41 |
| Weight Per Disc - 9'' Front & Rear | 41 |
| Weight Per Disc - 9'' Front, 7.5'' Rear | 41 |
| Bearing Hanger | 3/8'' x 6'' Plate, with Dual 5/8'' U-Bolts |
| Ball Bearing Type | Self-Aligning, Sealed |
| Disc Gang Angles | Front & Rear: 0°, 7°, 14°, 21° |
| Frame Tubes | 2 1/2'' Square |
| Gang Tube | 3'' x 2'' |
| Gang Axle | 1'' Square High Carbon Steel |
