Specializing in farm equipment sales, parts, and service.

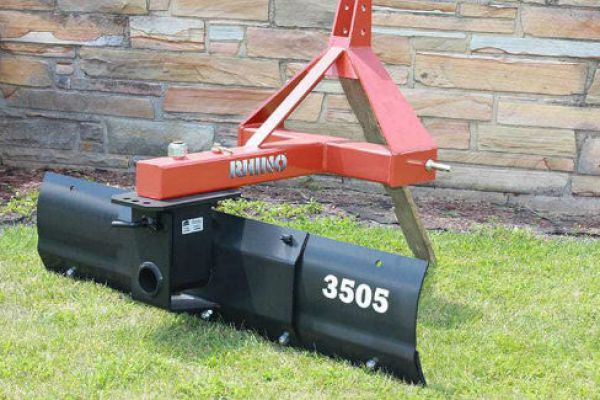

Rhino 35 Series

Double tap to zoom



Features

Loaded with user friendly features to reduce your work load.

Whether your tractor is 30 HP or 70 HP and you need to build a terrace, dig a ditch, maintain a road, remove snow, or landscape a site, Rhino has a ruggedly-built blade that's right for you. Rhino offers a choice of three series of blades with working widths from 5' to 8' to get the job done. Each series is loaded with user friendly features to reduce your work load. Features including sturdy “A” frames, multiple adjustment settings, precisely-formed moldboards, and easily replaceable cutting edges make Rhino blades the first choice among productive farmers, ranchers, and landscapers year after year. Compare and see the many ways a Rhino rear blade can turn your tractor into a real workhorse.

  • 3 Series to Choose From
  • Multiple Adjustment Settings
  • Replaceable Cutting Edges
  • 5' to 8' Moldboard Widths
  • Optional Skid Shoes

Specifications

Model 35
Moldboard Width 5', 6', 7'
Moldboard (Thickness & Height) ¼'' x 14''
Cutting Edge ½'' x 6''
Hitch CAT 1 QH
Maximum Tractor PTO HP - 2-Wheel Drive 35
Maximum Tractor HP - 4-Wheel Drive 30
King Pin Diameter 1¼'' (Grade 8)
Adjustment Types Manual
Swing Offset (Max.) 12'' Left or Right
Pivot - Forward 5 Positions - Up to 30°
Pivot - Reverse 3 Positions - Up to 15°
Moldboard Tilt- Up & Down 15°
Parking Stand N/A
Weight (Approx.) 5' - 280 lbs
6' - 310 lbs
7' - 340 lbs.
