Apply NowRhino DSP10

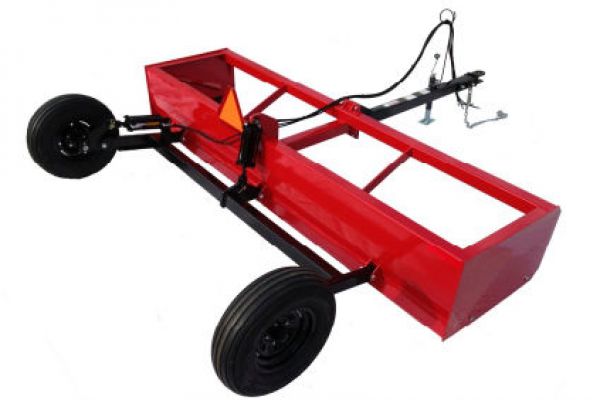

Pull-Type Dirt Scrapers DSP10
Designed to level and grade sizable amounts of material.
Rhino is proud to offer their new line of Pull-Type Drag Scarpers (DSP). These scrapers are designed to move, level, and grade sizable amounts of material including those on an angle which makes the DSP perfect for ditching, sloping, and terracing.
Features
- Available in 10 & 12' Widths
- Compatible With 70-125 HP Tractors
- Replaceable Side Wear Plates
Specs
| Model | DSP10 |
| Tractor HP (Min - Max) | 70 - 125 |
| Working Width | 120 3/16'' |
| Transport Width | 121'' |
| Moldboard Height | 18'' |
| Box Capacity | 2 1/4 Cubic Yards |
| Box Depth | 39'' |
| Max Cutting Depth | 5'' Below Grade |
| Dump Clearance | 21'' |
| Tilt Axle | Fixed or Hydraulic |
| Max Tilt Depth to the Right | 7 5/8'' |
| Max Title Angle | 3 1/2° |
| Tongue Construction | 4'' x 4'' Tube |
| End Plate Construction | 3/8'' Plate |
| Cutting Edge | 1/2'' x 6'' |
| Tires | 9.5L x 15 8 Ply |
| Weight Box | Optional |
| Weight (Approx.)* | 1,645 Lbs. |
