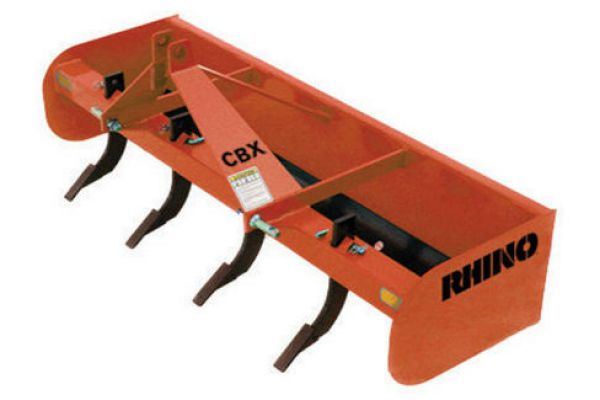

Compact Box Blade CBX48
Your grading and filling solution
The CBX series was engineered to be a heavy-duty option for compact tractor owners. This tough box has the strength and durability you need, in a compact size you can handle.
Features
- CAT 0 and CAT 1 Hitch Compatible
- Fully-Welded A Frame
- 3/16" side plates
- Adjustable/ Replaceable Shanks
- Replaceable / Reversible Bolted Cutting Edges
Specs
| Model | CBX48 |
| Overall Height | 29 1/2'' |
| Overall Width | 48'' |
| Overall Depth | 23 1/2'' |
| Box Depth | 17 11/16'' |
| Number of Scarifiers | 4 |
| Number of Plow Bolts | 8 |
| Weight | 240 lbs. |
| Lower Hitch Pin Height | 13 5/8'' |
| Cutting Edge | 2 3/8'' x 6'' Bolt on, Reversible, & Replaceable |
| Hitch | 3 PT CAT 0 & CAT 1 Q.H. |
| HP Required | 24 - 40 |
| Side Plates | 3/16'' |
