Apply NowPequea MP-16
Not a current model

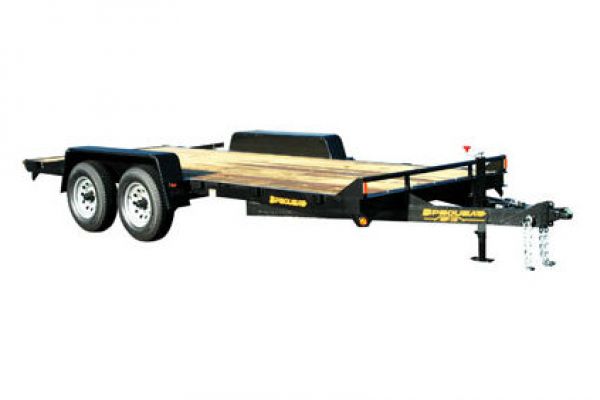

Skid Steer Equipment Trailers MP-16
MP-16 - 10k GVWR, Deck Length 16', Deck Width 78.5", Deck Height 23"
Features
The Pequea SST series skidsteer trailers are the choice trailer for the equipment professional. We made the frame extra heavy on all of our skidsteer trailers so an axle upgrade to 12,000 or 14,000 GVWR is possible. The strong diamond plate fenders are offset to allow 81" of clearance for those extra wide tracks. Standard 4" drop axles furnish one of the lowest loading angles around. No wonder this is the pro's choice.
Specs
| Specifications | MP-16 |
| Overall Length | 22' |
| Overall Width | 99" |
| Deck Length | 16' |
| Deck Width | 78 1/2" |
| Deck Height | 23" |
| Hitch Height | 19"-23" |
| Mainframe | 5" channel@6.7 lbs. |
| Cross-Members | 3" channel@4.1 lbs. |
| Hitch | 2 5/16" adj. ball or pintle |
| Axles | (2) 6,000 lbs. EZ lube |
| Brakes | Standard electric brakes (both axles) |
| Suspension | Slipper leaf springs |
| Wheel Size | 6 bolt 15" silver mod. |
| Tires | 225/75D-15 LR "D" 2,540 lbs. load cap. |
| Jack Capacity | 5,000 lbs. drop leg |
| GVWR | 10,000 lbs. |
| Trailer Weight | 2,000 lbs. |
