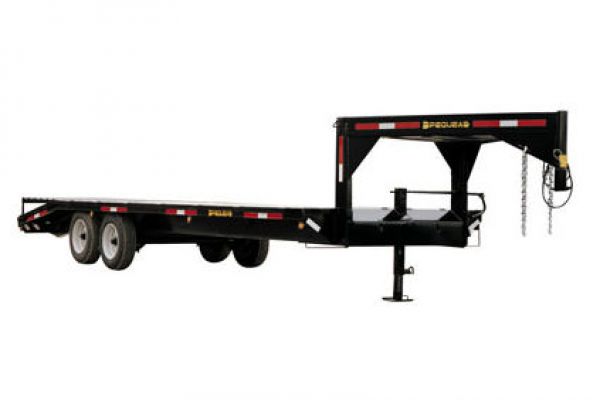

Call UsPequea G-12
Gooseneck Trailers G-12
Overview:
Heavy loads call for strength, stability and tight maneuvering. Pequea G-Series Gooseneck Trailers deliver on all counts. Pequea G-Series Trailers have the heaviest gooseneck and frame in their class for day in and day out use, combining precise construction with amenities like a standard built in toolbox, a mesh stora... + Read More
Features
G-12 - 12k GVWR, Deck Length 20' (includes 4' beavertail), Deck Width 101", Hitch Height 33"-44"
Specifications
| Specifications | G-12 |
| Overall Length | 27' 9" |
| Overall Width | 101" |
| Deck Length | 20'* |
| Deck Width | 96" |
| Deck Height | 33" |
| Hitch Height | 34"-44" |
| Beavertail Height | 4' |
| Mainframe | 7" channel@9.8 lbs. |
| Cross-Members | 4" formed channel@4.5 lbs. |
| Hitch | 2 5/16" adjustable ball |
| Axles | (2) 7,000 lbs. EZ lube |
| Brakes | Standard electric brakes (both axles) |
| Suspension | Slipper leaf springs |
| Wheel Size | 8 bolt 16" silver mod. |
| Tires | |
| Jack Capacity | 12,000 lbs. drop leg side wind |
| GVWR | 12,000 lbs. |
| Trailer Weight | 3,350 lbs. |
