Features
These low profile dump trailers offer the ability to haul your equipment to the job and then use it to fill the dump body with a monster payload.

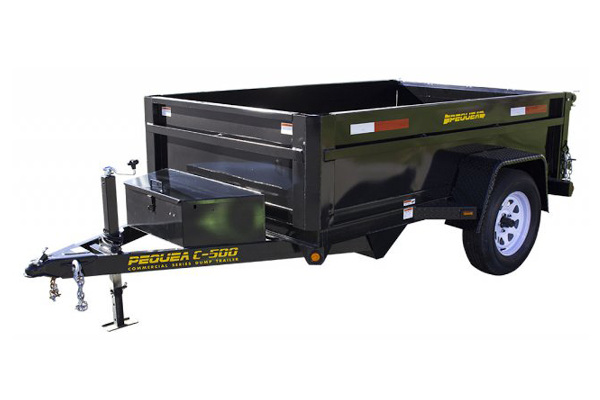

The C500 is a compact yet strong dump trailer perfect for homeowners and landscapers that don’t need a large dump bed but want something that will last. The bed is 62″ x 8′ and it is available with a 3.5K Axle and 5K Axle.
Specs
| C-500 | 2,999 lb GVWR |
| Bed Length | 8' |
| Bed Width | 62'' |
| Bed Height | 24'' |
| Main Frame | 7'' x 9.8 lb Structural Channel |
| Axles | 1 Dexter 3.5k 5 Bolt |
| Suspension | Shackle Leaf Springs |
| Wheels | 5 Bolt 15'' |
| Tires | 205/75 D15 |
| Hitch | Adj. 2 5/16'' Ball Coupler |
| Jack | 5,000lb Drop Leg |
| Brakes | N/A |
| Weight | 1,400 lbs |
| C-500 | 5,000 lb GVWR |
| Bed Length | 8' |
| Bed Width | 62'' |
| Bed Height | 24'' |
| Main Frame | 7'' x 9.8 lb Structural Channel |
| Axles | 1 Dexter 5.2k 5 Bolt |
| Suspension | Shackle Leaf Springs |
| Wheels | 6 Bolt 15'' |
| Tires | 225/75 D15 |
| Hitch | Adj. 2 5/16'' Ball Coupler |
| Jack | 5,000 lb Drop Leg |
| Brakes | Electric with Breakaway |
| Weight | 1,400 lbs |
