Apply NowNew Holland P2080 - 30ft
Air Disc Drills P2080 - 30ft
ACCURATE SEED PLACEMENT
Patented parallel-link opener design delivers industry-leading seed placement accuracy at higher speeds over rough terrain, resulting in best-in-class seed emergence.
DOUBLE SHOOT CAPABILITY
The P2082 Widths from 30 to 60 feet with 10-inch row spacing.
MORE ACRES PER DAY
P2000 Series a... + Read More
Features
PRODUCTIVE PERFORMANCE IN THE FIELD

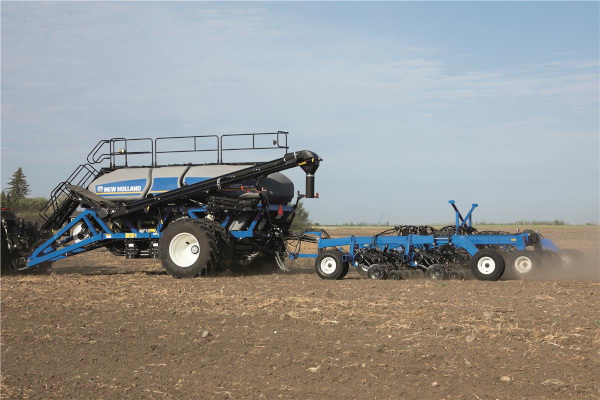

The P2080 disk drill model is specifically designed for P1000 Series air cart applications. It’s offered in 30-, 40-, 50- and 60-foot widths in 7.5- or 10-inch spacing for big acres and maximum productivity. The frame design offers exceptional weight distribution that is ideal for many different crops and soil types. In addition the narrow V-shape envelope adds additional stability for safe and convenient transport to and from the field.
PARALLEL LINK DESIGN
Industry leading patented parallel link design provides even seeding placement at higher speeds and on rougher terrains. It ensures best-in-class emergence in a wide variety of soil, seeding depths, and field conditions. The low maintenance design allows farmers to spend more time where it counts – in the field.
DEPTH CONTROL
For a customer who demands high productivity, look no further than the P2080 Disk Drill. The true 0-3.5” depth settings accommodate all seeding depths and the single-handed adjustment makes the P2080 the easiest depth adjustment on the market.
ACCURATE SEED PLACEMENT
The accurate seed placement is ideal for small grains such as wheat, barley, rice and canola. The new scraper and opener geometry allow for consistent seeding depth across the range of operation. There is no need for a seed shelf, as the seed can be placed in the bottom of the trench. High mounting of the seed tube ensures reduced wear, long life, and reduced plugging over the competition. The 18” disk cuts cleanly through the heaviest of crop residue’s to ensure optimal seed to soil contact. This ideal disk size reduces residue 'hair pinning' and maximizes seed to soil contact for ideal seed germination. The disks are also set at a seven-degree angle to open a uniform seed trench where the seed is accurately placed.
CLOSING SYSTEM DESIGNED TO ACCOMMODATE VARIOUS SOIL CONDITIONS
A heavy-duty-rubber, smooth-faced concave 4”x12” packer wheel is designed specifically for exceptional closing in tough conditions, whether you have clay, sandy or both types of soils. The double-edge closing wheel follows behind to seal the trench and is effective in a wide variety of soil conditions. The closed trench is essential to providing maximum seed-to-soil contact for uniform germination and plant stand establishment. The hollow center of the closing system further maintains a smooth field finish and reduces soil compaction.
VARIABLE PACKING PRESSURE RANGE ADJUSTMENT
The operator can further tailor the drill for varying moisture conditions and soil types with the variable packing pressure range adjustment. There is three convenient settings of 60, 75 and 85 pounds of available variable packing pressure for each row unit.
IN-CAB DOWN-PRESSURE CONTROL
In-cab hydraulic down pressure adjustment is standard equipment, allowing operators to make on-the-go adjustments without leaving the seat by using the IntelliView™ IV display. Three convenient presets help maintain ideal row-unit down pressure for changing field conditions. (ISO11783 electronics compatible with IntelliView™ IV monitors).
SECTIONAL CONTROL
P2080 drills can now be set up with P1000 Series New Holland Air Carts equipped with two section control. This option provides capabilities to shut off drill sections with the push of a button, or automatically via GPS. This option significantly reduces input costs and increase yields by eliminating overlap on turn rows and odd shaped fields.
UNMATCHED DURABILITY COMBINED WITH REDUCED MAINTENANCE COSTS
P2000 Series disk drills set a new higher standard when it comes to durability. You’ll find no other model comes close. And, durability is the key to reducing your downtime and maintenance costs. How tough are your soil and field conditions? Whether you have rocks, sandy soils or corn stalks, wear and tear on P2000 Series disk drills is minimized in unforgiving environments. Take a look and see how New Holland has given careful attention to the durable details of these drills.
•Earth Metal® formulated boron steel disk blades are designed to provide unmatched strength and durability in all conditions
•Each opener features a long-life disk scraper with integral tungsten carbide wear components
•The entire row unit is built tough, including 1.25-inch heavy-duty main pivot spindles and pivot pins with oil-impregnated copper iron alloy bushings for unrivaled durability
•Hardened wing pins with replaceable bushings
•Sealed double row main bearing with integral triple lip seals and external shield
•Row unit cast frame, link and adjustment handle
•Heavy-duty packer wheel
•High-strength chrome silicon springs
•High-quality, powder-coat paint finish
FRAME ACCESSIBILITY
Open frame design combined with larger bracing members allow for easy accessibility and maintenance across the drill. This design also allows for convenient depth adjustment on the center section of the drill frame.
BEST WING FLEX IN INDUSTRY
The P2000 series disk drill offer the best wing flex in the industry. It’s flexible frame provides a total of 25°total flex – 10° flex up and 15° flex down. This feature allows for consistent accurate seeding placement across in the width of the drill. Flexibility also disperses frame stress for more durability than traditional welded joints. Where the frame flexes, durable, self-lubricating joints with chrome pins and polyurethane pads add lasting performance unmatched in the industry.
BEST-IN-CLASS FLOTATION
A high flotation walking beam tandem axle option is available on all models of the P2000 Disk drill. The option features walking beam tandem axles on both the front and the rear mainframes. This unique feature provides maximum flotation in the toughest conditions. In addition this axle option allows for better ground following and better crop emergence on wheel tracks.
CONVENIENT & NARROW TRANSPORT
The narrow transport widths on all P2080 models allow for easy transport on narrow roads or bridges. Along with the narrow width, the design offers excellent stability making it easy to safely transport equipment on public roads. The narrow transport width also aids in maneuvering around buildings and shops.
Specs
Model | P2080 - 30 ft. |
Specifications | |
Toolbar Width, ft. (m) | 30 (9.1) |
Transport height, ft. (m) | 13 (3.96) |
Transport width, ft. (m) | 12 (3.65) |
Road-to-opener Clearance, in (cm) | 8.5 (21.6) |
Weight 7.5 " spacing (empty), lbs. (kg) | 19,600 (8900) |
Weight 10 " spacing (empty), lbs. (kg) | 17,500 (7900) |
Length w/ rear hitch (pin to pin), in (m) | 36.4 (11.09 ) |
Available Spacing, in (cm) | 7.5 (19.1) & 10 (25.4) |
Split rank capability, in (cm) | 15 (38.1) 20 (50.8) |
Number of row units 7.5" spacing | 48 |
Number of row units 10" spacing | 36 |
Minimum tractor PTO hp required 7.5" spacing* | 195 |
Minimum tractor PTO hp required 10" spacing* | 145 |
Minimum tractor PTO hp required 7.5" spacing with air cart* | 260 to 295 |
Minimum tractor PTO hp required 10" spacing with air cart* | 210 to 245 |
Fold Type | Single |
Wing Sections | 3 |
Tires total | 12 (16 optional) |
Center section walking beam castor tires | 12.5L x15 |
Rear mainframe dual walking beam tire size | 18L x 16.1 |
Inner and outer wings walking beam castor tire size | 12.5L x15 |
Operating Speed mph (kph) | 5-8 (8-12.7) |
Hitch Type | Floating |
Ground following design | Parallel link |
Row unit travel from level surface, in (cm) | 8.5 (21.6) up, 11.5 (29.2) down |
Wing flex | 15 degrees up, 10 degrees down |
Disks, in (cm) | 18 (45.7) at 7 degrees |
Depth settings, in (cm) | 14 position T-handle adjust from 0 to 3.5 (8.9) |
Down pressure adjustment | Variable spring |
Closing wheel variable packing pressure, lbs. (kg) | 60, 75 or 85 (27.2, 34 or 38.6) |
Standard in-cab down pressure control, lbs. (kg) | 200 to 1400 (91 to 635) |
Hydraulic requirements, gpm (lpm) | 30 (114) - 3 remotes |
Hydraulic system | In cab down pressure adjust standard |
Tow between/behind air cart capacity, bushels (l) | 280 to 430 (9867 to 15153) |
Mounted Seed tank capacity, bushels (l) | NA |
Mounted tank | NA |
Display system | Intelliview IV or ISO11783 compliant display |
Sectional control | 1/2 width - optional DIA on Air Cart |
Blockage Monitoring | Optional |
Optional equipment | |
High floatation tire option | Optional |
Hydraulic work switch | Optional |
Weight bracket | Optional |
Meter roll selection (extra fine, fine, coarse) | Optional |
Auxiliary rear hitch | Optional |
4-section metering with overlap control | - |
Cross tillage hydraulic package | Optional |
GPS speed sensor | - |
Split-rank header insert, 7.5" (19.1 cm) | Optional |
Primary run blockage | Optional |
Secondary run (all run) blockage hydraulic work switch | Optional |
1/2 width sectional control on air cart | Optional |
Extended wear air package | Optional |
