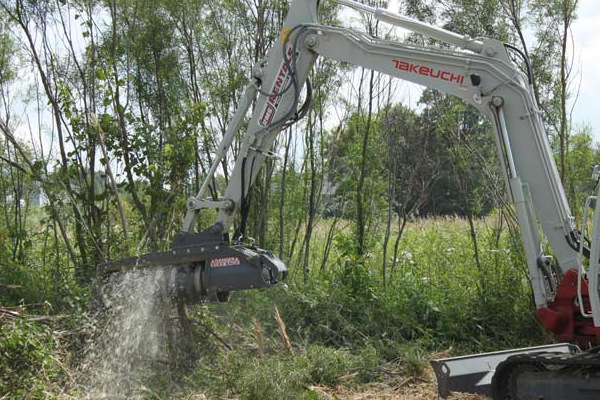

The Battle Ax is the latest mulching attachment from Loftness. Its unique, direct-drive rotor with built-in depth gauges is ideal for a variety of vegetation management applications, including right-of-way maintenance, land clearing, forestry mulching and more. Models are currently available for 7-15 ton excavators.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
The new 17-inch-diameter Battle Ax rotor features built-in depth gauges, which function similarly to raker teeth on chain saws to prevent the attachment from engaging too much material at one time. This unique design is more ideal for managing the amount of material being fed into the attachment than competitive ring-style rotors, which many operators find to be overly limiting.
Two-Stage Cutting Chamber
The Loftness exclusive two-stage cutting chamber provides some of the smallest particle sizes in the industry by cutting material twice. The primary shear bar is adjustable, so the clearance can be narrowed or widened depending upon the desired material size and production rate. From here, the partially reduced material passes smoothly to the secondary cutting chamber behind the front bumper, where it’s processed further before being discharged toward the ground.
Variable Displacement Piston Motor
The variable displacement piston motor is adjustable for fine-tuning performance on all makes and models of 7- to 15-ton excavators. It turns the rotor between 1,600 and 2,500 RPM.
The hydraulic motor is directly mounted to the rotor to eliminate the hassle of drive belts and reduce overall maintenance concerns on the Battle Ax mulching attachment. It features a unique rubber isolation coupler to minimize vibration to the motor.
Adjustable Skid Shoes
The skid shoes are adjustable for cutting up to 1.5 inches below grade.
The standard heavy-duty spade hook is a useful tool for positioning material to be mulched.
Machined Anti-Wrap Bearing Design
The rotor ends are machine turned to mate with close tolerance machined anti-wrap rings, resulting in minimal debris in the bearing chamber.
Steel Deflector Chains
Deflector chains are included as standard equipment to help minimize the amount of flying debris on the jobsite.
