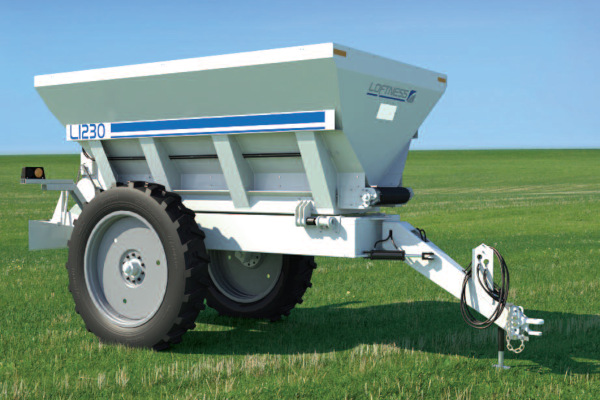

The Loftness L1230 12-ton spreader features a belt-over-chain conveyor design that is ideal for spreading lime, but can also be used for fertilizer applications. It is variable rate ready with hydraulic belt and spinner drives, and also has a 41-inch frame clearance for in-season use in row crops.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Dual stainless-steel spinners produce a consistent spread pattern from 20 to 60 feet wide for lime, or 40 to 90 feet wide for fertilizer.
A 24-inch belt-over 88C chain design is ideal for providing a consistent flow of lime to the spinners, and also works well for fertilizer applications.
The 409 stainless-steel hopper is smooth with a 50-degree slope, minimal flat surfaces and no internal gussets or plates to accumulate lime or fertilizer. This results in a much cleaner system that maximizes material flow and helps prevent corrosion.
Only two bearing part numbers for all driveline components on the machine greatly simplifies the maintenance and replacement process.
The hitch has a moveable clevis to accommodate a wider range of drawbar heights, and allows for leveling of the spreader. The hitch is also integral to the frame, while the suspension pulls from the hitch to lower the amount of frame stress.
41-Inch Frame Clearance
A 41-inch frame clearance allows the spreader to be used for in-season applications in row crops.
Adjustable Row Spacing
The wheels are adjustable from 80 to 120 inches wide to accommodate a variety of row spacings. 90- to 152-inch adjustable wheel spacing is optional.
Lime Spread Pattern (Dual) (Hydraulic)
20' - 60'
Fertilizer Spread Pattern (Dual) (Hydraulic)
40' - 90'
Hopper Capacity (Struck)
266 cu. Ft.
Hopper Capacity (Heaped)
362 cu. Ft.
Max Gross Weight
98" - 135"
Overall Width (With 90-152 Spacing Option)
103" - 167"
6x6 in. - infinitely adjustable from 80"-120" or 90"-152"
