Features

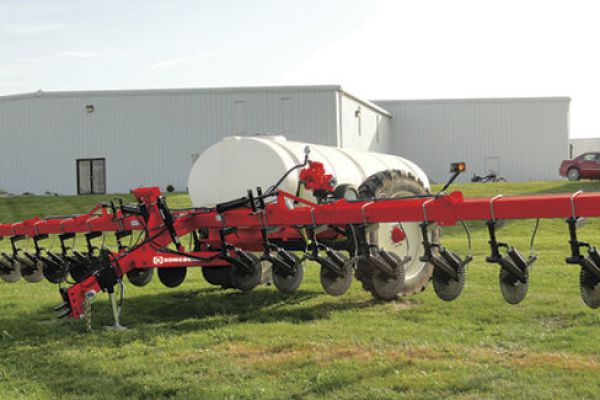

F3450 SIDEDRESS APPLICATOR
Go from 12 to 16 rows in minutes
Kongskilde F3450 is our chameleon… with its ability to change from a 12 to 16 row applicator in less than five minutes. If you’re looking for maximum versatility, this is your choice. Like the F3400, it can be set up on 20" (50.8 cm), 22" (55.88cm), 27" (68.58 cm), 36" (91.44 cm), 38" (96.52 cm) and 40" (101.6 cm) row spacing and is available in a 1000 gal (3785L) or 1600 gal (6057 L) model. The 1000 gal (3785 L) tank is available with two tire sizes. The 1600 gal (6057 L) uses
a 14.9R x 46 14-ply tire, which has a 12,000 lb. (5443 kg) rating – making it the heaviest unit in the industry. The coulter assembly is available with an injector or knife for applying fertilizer. Kongskilde manufactures the coulter assemblies that are used on all Kongskilde Sidedress Applicators.
Specs
| Model | Model F3450- Liquid - 1000 Gallon | Model F3450- Liquid - 1600 Gallon |
| Foldable | Yes | Yes |
| Frame width | 7'' x 7'' | 7'' x 7'' |
| Min. working width | 27-1/2' | 27-1/2' |
| Max. working width | 42-1/2' | 42-1/2' |
| Min. Number of Rows | - | - |
| Max. Number of Rows | Varies with row spacing | Varies with row spacing |
| Row distance | Varies: 20'', 22'', 27'', 30'' (standard row width), 36'', 38'', & 40'' | Varies: 20'', 22'', 27'', 30'' (standard row width), 36'', 38'', & 40'' |
| Tank capacity | 1000 Gallon | 1600 Gallon |
| Trailed | Yes | Yes |
| Transport height | 27-1/2' - 12' 6'', 37-1/2' - 12' 6'', 42-1/2' - 13' | 27-1/2' - 12' 6'', 37-1/2' - 12' 6'', 42-1/2' - 13' |
| Transport width | 16' 6'' | 16' 6'' |
| Standard tires | 13.6 x 38, 18.4 x 26 | 14.9R x 46 |
