Features

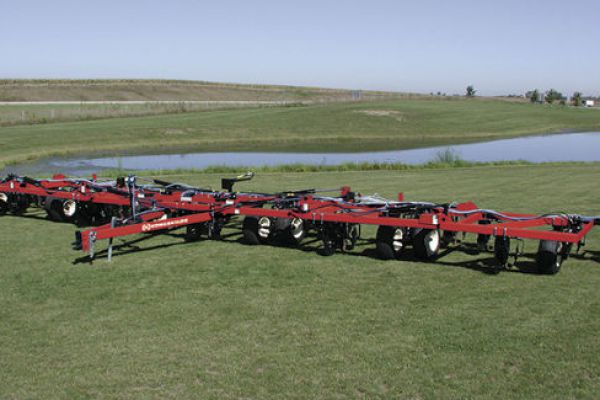

The F1500 can be setup on even or odd row spacing with either single or tandem wheel configurations. All wheels run in a line and are all hydraulically controlled using rephrase hydraulic cylinders. There are no pin adjust gauge wheels on the F1500 toolbar and there is just one tire size – 12.5 L x 15.
Specs
| Working Widths | 40’, 42-1/2’, 47-1/2’ & 50’ |
| Mainframe & Wing Tubing | 7” x 5” Rectangular Tubing |
| Front Hitch | 6” x 4” Rectangular Tubing A-Frame Style Hitch |
| Transport Width | - |
| Transport Width (even rows) | 40’ & 45’ - 17’ 3” 50’ - 19’ 3” |
| Transport Width (odd rows) | 42-1/2’ - 17’ 8” 47-1/2’ - 19’ 9” |
| Transport Height | 27-1/2’ & 30’ - 11’ 6” 32-1/2’ & 37-1/2’ - 13’ 6” |
| Mainframe Wheels (single or tandem | 12.5L x 15 - 8ply |
| Wing Wheels | 12.5L x 15 - 8ply (all hydraulically operated - no pin adjust) |
| Rear Hitch Assembly | Rigid or Floating with Telescoping Drawbar |
| Rephasing Lift System | Standard Equipment |
| Safety Lighting System | Standard Equipment |
| Combination Hitch Clevis (Single - Double) | Standard Equipment |
| Safety Chain | Standard Equipment |
| Saddle Clamp Wheel Legs | Standard Equipment |
| Rigid Shank Mounts w/20” Spring Loaded Coulter |
Optional |
| Auto-Reset Shank Mounts w/20” Spring Loaded Coulter |
Optional |
| 18” Trash Titan Disk Sealer | Optional |
| Water Rinse Tank w/Toolbox | Optional |
| Monitor Mounting Bracket (Raven/Hinicker) | Optional |
