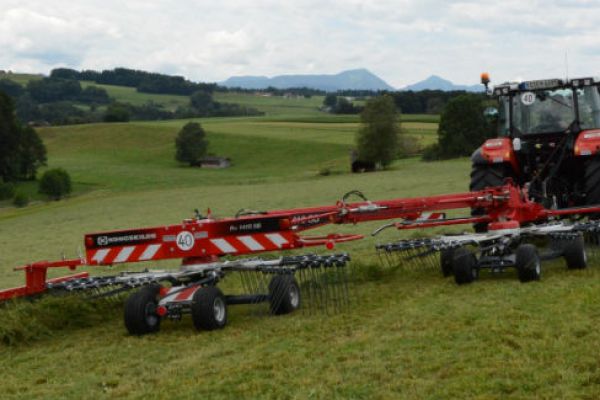

Kongskilde R+ 1410 S

Double tap to zoom



Features

  • R+ rotor
  • Variable working witdh
  • Continous adjustment of working width
  • Closed gearbox
  • Multi-Link frame
  • Hydraulic rotor lifting
  • Tangential tine arms
  • Automatic steering for sharp bends
  • 3 functions:
    - Raking into one single swath
    - Raking into two single swaths
    - Turning of two single swaths


High manoeuvrability and safety on slopes
The Multi Link frame ensures the machine  easy adaption to the ground. The lateral inclination of the rotor can be  modified for both rotors separately.

R+ 1410 is not only for use on flat fields, but also on slopes and even on ridge and furrow by means of its construction where no other side delivery rake succeeds. Most important is the low centre of gravity and the multi Link suspension of the rotors. With R+ 1410 you work safely everywhere.

Adjustable from the driver’s seat
With a hydraulic handle it is possible to steer the rear rotor from the driver’s seat and thus adjust the working width continuously during operation. In line working  creates the smallest working width of 11’8” (3.6 m). Fully offset a working width of 21’ (6.35 m) is achieved.

Specifications

Model R+ 1410 S
Type Trailed
Working width 3.60 m - 6.35 m
Transport width 9.8 ft
Min. Power requirements kW/hp 30/40
Number of arm/doubletines 12-4
Weight 1.3 t
Cardanic Rear rotor Option
Tandem wheel rear rotor Standard
Placement of swaths Side
