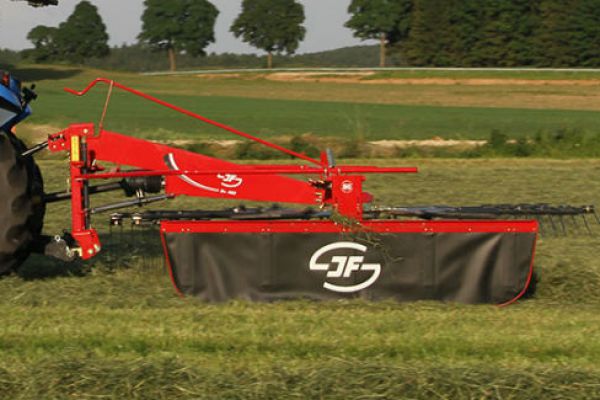

Kongskilde R+ 420

Double tap to zoom



  • Optimal placement of wheels
    The wide axle for the rotor wheels is advanced and close to the tines. This ensures perfect ground following and optimal performance.
  • Flexible swath curtain
    The hard-wearing swath curtain is reinforced by integrated leaf springs and can be adjusted to suit requirements.
  • Easy folding of swath curtain for transport
    The swath curtain can be folded up for transport. The biggest models R/R+ 460 have a strong tension spring to assist the folding
  • Easy to mount
    Mounting to the tractor is easy as the parking stand is connected to the main frame. This frees-up the headstock for rapid mounting/dismounting.
  • Parking
    With tine arms stored above the rake and swath curtain folded vertically, the rake takes up minimum area for storage.
  • Transport safety
    When the rake is lifted it automatically moves back to the middle position. In the middle position (transport position) the 3-point headstock can be locked. This ensures safe transport and smooth driving.
  • Adjustable swath curtain
  • The jack stand is mounted on the main frame.
  • The tine arms are safely placed onto the tine arm carrier.


Model R+ 420
Type 3-point
Working width 13.6 ft
Transport width 6.2 ft
Min. Power requirements kW/hp 26/35
Number of arm/doubletines 12-4
Weight 1256.6 lb
