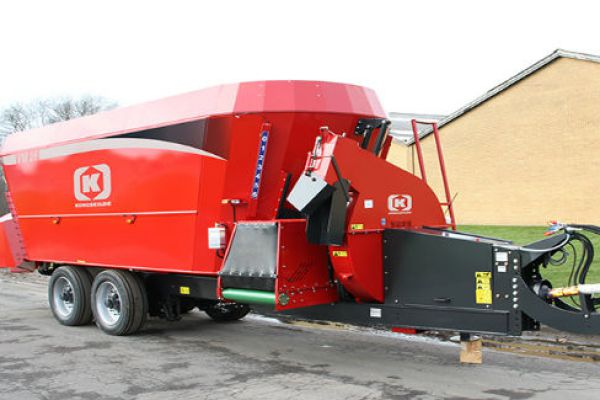

The VM-3 SB Multi has a unique concept of combining feed and straw bedding without compromise. Feeding with cross conveyer is especially suitable for feed mixtures with high content of straw. For bedding the blowing capacity of up to 60' meets almost all demands. With the multi model it is possible to reduce the number of machines needed on the farm. - Less
The VM-3 SB Multi has a unique concept of combining feed and straw bedding without compromise. Feeding with cross conveyer is especially suitable for feed mixtures with high content of straw. For bedding the blowing capacity of up to 60' meets almost all demands. With the multi model it is possible to reduce the numbe... + Read More
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Steerable axles Axles with articulation (steerable) are available for the big 2-auger and all 3-auger mixers. - Less wear on tires and surface. - Reduces the load on the chassis.
Closed technical compartment for electronic and hydraulic components - Prevents damage to components - Trouble shooting is easier - Protection against feed remains, dirt from tractor wheels, wind and weather etc.
Easy access to technical compartment - Minimum time is used for inspection,troubleshooting and maintenance of battery.
Strong ladder and platform On VM-1 S, VM-1, VM-2S and VM-3 S the ladder can subsequently be moved to the right-hand side. - Possibility of inspection of the mixture and high safety. - Easy access
Separate chassis The drawing power goes through the drawbar and the chassis frame to the rear axle. The tub stands on the chassis via the weighing cells. - No twisting or horizontal draw in the weighing cells - The weighing system can work when the tractor is disconnected and the mixer stands on the support.
Oversteering of valve block - In case of electronic failure, the hydraulic valve block can be oversteered manually directly on the valve.
Straight dive lines Drive lines without deviation of the PTO shafts. - Long greasing intervals - Minimum maintenance.
Strong auger gears Strong auger bearing consisting of 2 large conical roller bearings. When it is cold, the oil level falls. Therefore the upper bearing is greased for life and the lower bearing runs in oil bath. - Maximum support - Minimum friction and maintenance.
Tapered tub sides The tapered tub sides hold the feed firmly. - Prevents the feed from rotating with the auger. - Instead the auger mixes the feed quickly and effectively.
Adjustable shearbars The 2 adjustable shearbars are very effective and optimise the shredding of bales of hay and straw. - Quick shredding of bales - Shorter operation time means less wear and less power consumption.
One shear bolt One shear bolt for all augers. All augers are stopped when the shear bolt releases. - The other auger gears are not overloaded by the additional forces. - The augers remain synchronized.
Spring-loaded axles All mixers with 2 or 3 axles have spring suspended axles. Less wear on tires, rim and chassis because the individual wheel is not exposed to the entire load, contrary to fixed axles.
