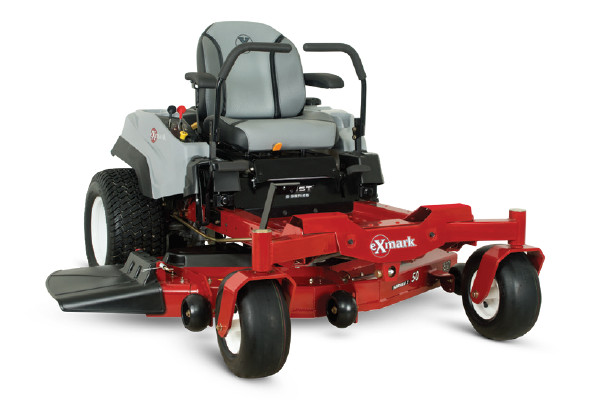

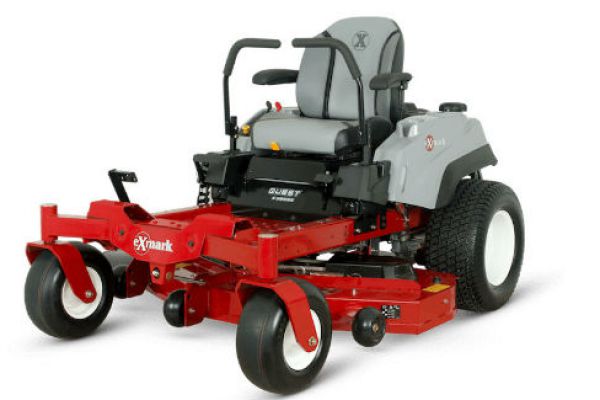

Exmark QZS708GEM50200

Double tap to zoom



Features

Engine Protection

Standard, rear engine guard provides increased protection of critical engine components. The S-Series engine guard is enhanced for extra engine protection.

Welded and Fabricated Deck

Our deck system offers added strength and commercial durability.

New Styling, Same Comfort

The redesigned Quest mower has the commercial Exmark styling and provides a premium, ergonomic seat system that delivers a smooth, comfortable ride, even over uneven terrain.

Simple, Easy Adjustments

With a single-point height adjust, it's easy to vary the Quest's cutting deck. The S-Series mower is quipped with a foot lift-assist, which eases lifting and lowering the cutting deck. (Optional on E-Series.)

Fuel Tank Capacity

A single, 2.9-gallon tank with one fill location keeps you mowing longer with fewer fill-ups.

Exmark Engines

Built precisely to our specifications allowing us to control engine quality from start to finish. Super-quick and easy oil drain system, and an advanced air intake system specially designed to decrease dirt ingestion and increase performance.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
Drive Tires 20 x 10.0-10, 2-ply Turf Tech TL
Cup Holder Standard
Tractor Frame Unibody, Riveted 10 ga. Steel
Steering Control Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
Front Caster Tires 13 x 6.5-6 smooth, pneumatic
Parking Brake Lever-actuated pawl brake.
Seat Commercial Grade High Back contoured foam padded with armrests. Hinged mounting, spring suspension. Adjustment: Fore and aft from Operators' Position.
Electrical 12-volt battery with 15-amp alternator.
Power Components
Engine Brand Exmark
Engine Model 708
Engine Displacement 708
Engine Series V-Twin
Engine Type Carbureted
Engine Speed 3,300 rpm
Air Filter Standard Engine Manufacturer's air filter
Fuel Type Gas Carbureted
Fuel Capacity High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Two Hydro Gear ZT2800 hydrostatic transmission with charge pumps, no hoses, integrated cooling fans, spin-on filter and heavy-duty components.
Speed Infinitely variable speed selection from 0-7 mph (11.3 km/h) forward. 0-3.4 mph (5.5 km/h) reverse.
Carb Compliant No
Deck Lift Standard; lever lift. Foot-assist lifts the deck to maneuver around obstacles.
Safety Package Operator Presence Controls (OPC) and drive system interlock.
ROPS None
PTO Engagement MagStop electromagnetic 105-ft-lbs clutch
Drive Wheel Release Allows unit movement without engine running.
Casters .38" thick caster yoke arms
Decks
Width / Cutting Deck 50"
Deck Style Floating Deck
Deck Style Description Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch.
Deck Construction 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard foot operated assist.
Blades 3 Blades at 17.50" Length
Dimensions
Width 61.7 (156.7 cm)
Length 76.0 in. (193 cm)
Height 41.5 in. (105.0 cm)
Curb Weight 652
