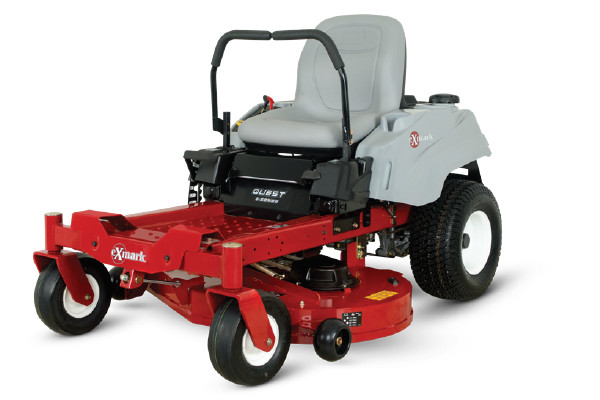

Exmark QZE702GEM34200

Double tap to zoom



Features

Engine Protection
Standard, rear engine guard provides increased protection of critical engine components. The S-Series engine guard is enhanced for extra engine protection.

New Styling, Same Comfort
The redesigned Quest mower has the commercial Exmark styling and provides a premium, ergonomic seat system that delivers a smooth, comfortable ride, even over uneven terrain.

Fuel Tank Capacity
A single, 2.9-gallon tank with one fill location keeps you mowing longer with fewer fill-ups.

Exmark Engines
Built precisely to our specifications allowing us to control engine quality from start to finish. Super-quick and easy oil drain system, and an advanced air intake system specially designed to decrease dirt ingestion and increase performance.

Specifications

Blade Spindles No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
Drive Tires 18 x 6-8, 2-ply Turf Tech TL
Tractor Frame Unibody, Riveted 10 ga. Steel
Steering Control Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
Front Caster Tires 11 x 4-5 smooth tread, pneumatic
Parking Brake Lever-actuated pawl brake.
Seat Extra High Back foam padded. Hinged mounting, spring suspension. Adjustment: Fore and aft 3 in. by loosening 2 bolts and sliding seat.
Electrical 12-volt battery with 15-amp alternator.
Standard Features Cup holder
Optional Features Engine hour meter
Engine Brand Exmark
Engine Model 702
Engine Displacement 708
Engine Series V-Twin
Engine Speed 3,300 rpm
Air Filter Standard Engine Manufacturer's air filter
Fuel Type Gas Carbureted
Fuel Capacity High-capacity, 3.0-gallon (11.0-L), single fuel tank with single fill location.
Fuel Indicator Translucent Visual
Drive Hydro-Drive
Drive Description Two Hydro-Gear ZT2100 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir.
Speed Infinitely variable speed selection from 0–7 mph (11.3 km/h) forward. 0–3.4 mph (5.5 km/h) reverse.
Carb Compliant No
Deck Lift Standard: lever lift.
Safety Package Operator Presence Controls (OPC) and drive system interlock.
ROPS None
PTO Engagement MagStop electromagnetic 80-ft-lbs clutch
Drive Wheel Release Allows unit movement without engine running.
Casters .38" thick caster yoke arms
Width / Cutting Deck 34"
Deck Style Floating Deck
Deck Style Description Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch.
Deck Construction 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard lever lift.
Blades 2 Blades at 17.50" Length
Width 46.0 in. (117 cm)
Length 73.0 in. (185 cm)
Height 40.7 in. (103.4 cm)
Curb Weight 547
