Specializing in farm equipment sales, parts, and service.

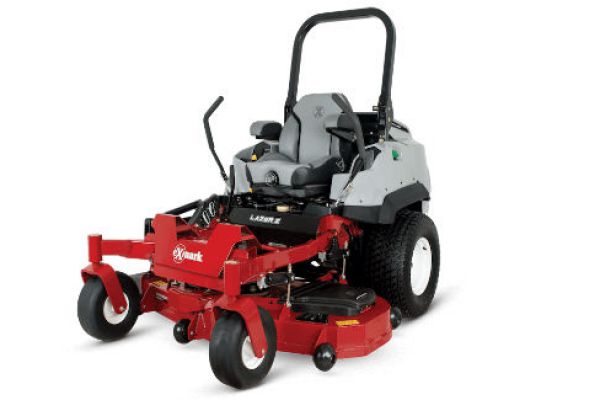

Exmark LZS80TDYM72RW0

Double tap to zoom



Features

IMPROVED HANDLING

The engine and radiator have been placed lower to the ground in the redesigned Lazer Z Diesel. This provides an even lower center of gravity leading to improved traction and a smoother ride.

REDUCED MAINTENANCE AND SERVICE

With an efficient and robust powertrain system, in addition to eliminating drive belts, these machines have less maintenance and longer service intervals. And the tool-less belt access and removable floor pan makes servicing easy.

FUEL CAPACITY

For longer work intervals, the Lazer Z Diesel has a 12.0-gallon capacity with two tanks. This will keep you mowing longer with fewer fill-ups.

HYDRAULIC DECK LIFT

Standard on all diesel units, the hydraulic deck lift provides for easy cutting height adjustment and quick transport.

TIRE SIZE / GROUND SPEED

The 26" x 12"-12" drive tires allow you to reach speeds up to 12.5 mph on machines equipped with the 1.6 Liter Common Rail engine. The large drive tires also provide superior traction and handling, giving you the ability to manage diverse terrain and conditions.

PRODUCTIVITY

The robust engine power and large deck sizes make these mowers Exmark's most productive diesel machines ever. They are a great solution for universities, municipalities and other sizeable properties.

ON-BOARD INTELLIGENCE

The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.

LEADING ZERO-TURN. STRONG WARRANTY.

Purchase an Exmark Lazer Z Diesel mower with confidence by taking advantage of the protection Exmark provides for you with our five year limited warranty. Now standard on all Exmark Lazer Z Diesel mowers sold in the U.S. or Canada. For complete details, visit your local dealer.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Drive Tires 26x12-12, 6ply Multi Trac®
Cup Holder Standard
Tractor Frame Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
Front Caster Tires 15 x 6.0-6, smooth-tread, semi-pneumatic.
Parking Brake Lever-actuated internal wet disc brake.
Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Electrical 12-volt battery with 55-amp alternator.
Power Components
Engine Brand Yanmar
Engine Model 3TNV80FT
Engine Displacement 1,267
Engine Series TNV
Engine Type Electronically Governed IDI Turbo Diesel
Engine Speed 2,600 RPM
Air Filter Heavy-duty canister air filtration system with electronic vacuum sensor
Fuel Type Diesel
Fuel Capacity 12-gallon (45.4-L), side fuel tanks
Fuel Indicator Yes - mechanical float type
Drive Hydro-Drive
Drive Description Kanzaki KPS-18T Transmission, 15-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-H motors, hydraulic oil cooler.
Speed Infinitely variable speed selection from 0–11.0 mph (18 kmph) forward, 0–6 mph (10 kmph) reverse.
Carb Compliant Yes
Deck Lift Hydraulic
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Decks
Width / Cutting Deck 72"
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
Blade Tip Speed Approximately 17,900 fpm
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
Blades 3 Blades at 24.50" Length
Dimensions
Width 78.0 in. (198.1 cm)
Length 100.6 in. (255.5 cm)
Height 72.5 in. (244.6 cm)
Curb Weight 2041
