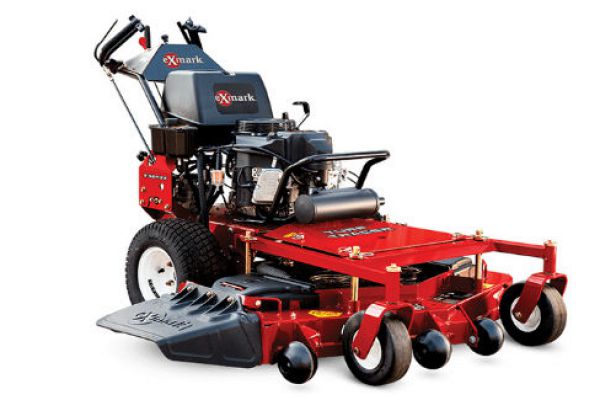

Exmark TTS541CKA48300

Double tap to zoom



Features

New Electric Clutch
Proven to be among the most durable and reliable in the business, Exmark’s superior electric clutch technology allows for easier and faster belt servicing.

Forget Flats
Standard 9” x 3.5-4” smooth-tread, semi-pneumatic front caster tires virtually eliminate tire repair.

Hour Meter Comes Standard
Improve maintenance records and track service intervals for longer life.

Patented Enhanced Control System (ECS)
Recent university tests showed landscape professionals prefer our control system to all others on the market.

Propane
An eco-friendly, lower cost fuel reduces operating expenses versus typical gas-powered mowers.

Floating Deck
Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch.

Specifications

Steering Control Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Casters .38" thick caster yoke arms
Front Caster Tires 9 x 3.5-4, smooth-tread, semi-pneumatic.
Drive Tires 16 x 7.5-8, 4-ply Turf Master®
Safety Package Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Parking Brake Lever-actuated mechanical compression.
Electrical No battery, recoil start w/ 5 amp clutch coil
Standard Features Engine hour meter
Engine Model FS541V
Engine Brand Kawasaki®
Engine Series V-Twin
Engine Speed 3,600 rpm
Air Filter Standard Engine Manufacturer's air filter
Drive Description Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1\\" (2.54 cm) tapered shafts.
Speed Infinitely variable speed selection from 0– 6.2 mph (10 kmph) forward, 0–2.2 mph (3.5 kmph) reverse.
PTO Engagement Electromagnetic 105 ft-lbs clutch.
Fuel Capacity 5-gallon (18.9-L) fuel tank.
Drive Wheel Release Allows unit movement without engine running.
Deck Lift Manual lift with hairpin from hole to hole for position adjustment.
Fuel System Carbureted
Engine Displacement 603
Drive Hydro-Drive
Fuel Indicator None
Carb Compliant Yes
Fuel Type Gas Carbureted
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck 48"
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Blade Tip Speed Approximately 18,500 fpm.
Blades 3 Blades at 16.25" Length
Width 59.5in. (151.1 cm)
Length 73.7 in. (187.2 cm)
Height 42.0 in. (106.7 cm)
Curb Weight 588
