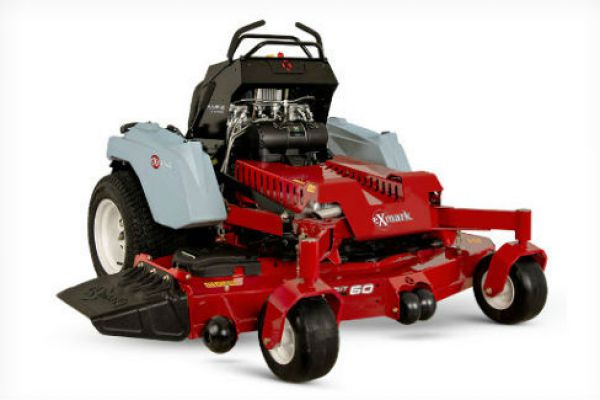

Exmark STS650AKC48400

Double tap to zoom



Features

Cut Quality
Available in a variety of deck widths, Staris S-Series features proven Exmark UltraCut Series 4 decks providing unmatched performance and Exmark's legendary quality of cut.

Smart Controller
The intuitive Smart Controller reduces downtime with maintenance reminders and on-screen machine health diagnostics along with an enhanced interlock display with both engine and PTO hour displays.

Height of Cut
The height of cut system was developed for operators to quickly and accurately change the cut height by simply raising and lowering the deck.

Operator Position
The large, open platform comfortably positions operators between the drive tires, making them feel integrated into the machine, while also allowing them to get on and off the machine quickly and efficiently.

Drive System
The trusted pump and wheel motor combination provides commercial durability and smooth control. The system utilizes hard hydraulic lines reducing potential leak points, improving durability and hydro-oil cooling.

Serviceability
The flip up front cover gives operators easy access to perform routine lawn mower maintenance and cleaning, without the need for tools. The rear cover lifts and locks into place providing easy access to check and fill both engine oil and hydro fluid.

Specifications

Tractor Frame Welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Twin levers with adjustable front reference bar to modify forward ground speed.
Front Caster Tires 12 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
Drive Tires 23x8.50-12 Carlisle Turf Master
Parking Brake Lever-actuated bar brake.
Blade Spindles No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.
Electrical 12-volt battery with 15-amp alternator.
Cup Holder NO
Casters .50 thick caster yoke arms with tapered roller bearings
Standard Features Smart Controller
UPC 193308002569
Engine Brand Kohler®
Engine Model ECV650
Fuel System Electronic Fuel Injected
Engine Series Command™ EFI
Engine Speed 3,600 rpm
Engine Displacement 694
Air Filter Heavy-duty canister air filtration system
Drive System HYDRO
Drive Description Two Hydro Gear 12 cc pumps powering two Parker 12 cubic inch motors.
Speed Infinitely variable speed selection 0–10.0 mph (12.9 kmph) forward, 0–4.0 mph (6.4 kmph) reverse
PTO Engagement Warner 175 ft-lb clutch
Fuel Capacity 10-gallon (37.9-L), dual fuel tanks with dual fill location.
Fuel Indicator Yes - Float Gauge
Drive Wheel Release Allows unit movement without engine running.
Safety Package Operator Presence Controls (OPC) with safety interlock system indicators
Deck Lift Single point HOC; with mechanical lift-assist spring.
Carb Compliant YES
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck 48"
Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (0.64 cm) increments adjustable from operator’s platform.
Blades 3 Blades at 16.25" Length
Blade Tip Speed Approximately 18,500 fpm.
Width 59.6" (151.4 cm)
Length 69.3" (176.0 cm)
Height 46.7" (118.6cm)
Curb Weight 960
