Specializing in farm equipment sales, parts, and service.

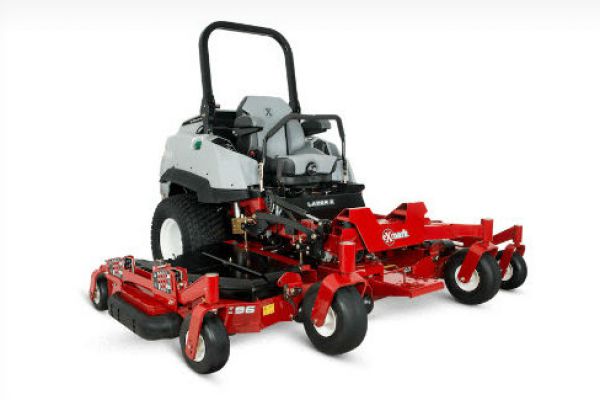

Exmark LZS88CDYM96RW0

Double tap to zoom



Features

Durable diesel power and a heavy-duty welded tubular steel unibody frame combine with Exmark’s UltraCut Rear Discharge cutting system to deliver productivity and reliability you can count on.

Specifications

Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Drive Tires 26x12-12, 6ply Multi Trac®
Tractor Frame Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
Front Caster Tires 15 x 6.0-6, smooth-tread, semi-pneumatic.
Parking Brake Lever-actuated internal wet disc brake.
Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Electrical 12-volt battery with 55-amp alternator.
Onboard Intelligence RED Technology
Standard Features 12-volt plug-in, engine hour meter and cup holder
UPC 1.93308E+11
Power Components
Engine Brand Yanmar
Engine Model 3TNV88C
Engine Displacement 1,642
Engine Series TNV
Fuel System Common Rail Diesel
Engine Speed 3,000 RPM
Air Filter Heavy-duty canister air filtration system with electronic vacuum sensor
Fuel Type Diesel
Fuel Capacity 12-gallon (45.4-L), side fuel tanks
Fuel Indicator Yes - mechanical float type
Drive Hydro-Drive
Drive Description Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-H motors, hydraulic oil cooler.
Speed Infinitely variable speed selection from 0-12.5 mph (20 kmph) forward, 0-7 mph (11 kmph) reverse.
Carb Compliant Yes
Deck Lift Hydraulic
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Decks
Width / Cutting Deck 96"
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with finish cut baffles included.
Deck Construction 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
Blade Tip Speed Approximately 18,100 fpm
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments.
Blades 4 Blades at 24.50" Length
Dimensions
Width 101.2 in. (257.0cm), 72.5 in. @ 3 in. HOC when folded
Length 97.3 in. (247.9 cm)
Height 72.5 in. (244.6 cm)
Curb Weight 2584
