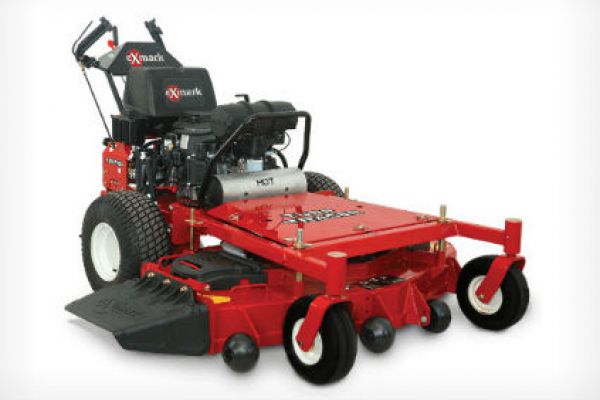

Exmark TTX650EKC52400

Double tap to zoom



Features

Eco-Friendly

Reduces fuel consumption, fewer emissions and carbon footprint.

Fuel Savings

Delivers up to 25% in fuel savings.

Reduce Green House Gases

Fuel saved directly correlates to reduced harmful exhaust emissions, including green house gases.

Easy to Start

Easy start in any altitude or climate condition (no manual choke).

Engine Efficiency

Closed loop (with O2 sensor) monitors combustion and keeps engine running at optimum levels.

Sequential Fuel Injection

Delivers the precise amount of fuel and spark where needed to maximize efficiency and power.

Specifications

Equipment
Steering Control Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Casters .38" thick caster yoke arms
Front Caster Tires 11 x 4.0-5, smooth tread, semi-pneumatic.
Drive Tires 18 x 8.5-8, 4-ply Turf Master®
Safety Package Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Parking Brake Lever-actuated mechanical compression.
Electrical 12-volt battery with 20-amp alternator.
Cup Holder No
Power Components
Engine Model ECV650
Engine Brand Kohler®
Air Filter Heavy-duty canister air filtration system
Drive Description Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54cm) tapered shafts.
Speed Infinitely variable speed selection from 0– 6.75 mph (10.9 kmph) forward, 0–2.25 mph (3.6 kmph) reverse.
PTO Engagement Electromagnetic 200 ft-lbs clutch.
Fuel Capacity 5-gallon (18.9-L) fuel tank.
Drive Wheel Release Allows unit movement without engine running.
Deck Lift Manual lift with hairpin from hole to hole for position adjustment.
Engine Type Electronic Fuel Injected
Drive Hydro-Drive
Fuel Indicator Yes - Float Gauge
Carb Compliant Yes
Fuel Type Gas EFI
Decks
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck 52"
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 10-gauge formed and welded spindle mounting locations for improved strength.
Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
Blade Tip Speed Approximately 18,500 fpm.
Blades 3 Blades at 18" Length
Dimensions
Width 64.8 in.
Length 84.8 in.
Height 45.0 in.
Curb Weight 720
