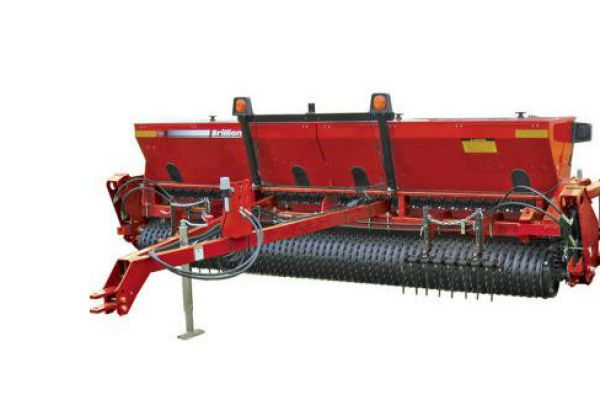

Brillion SL-2101
Features
- 8', 10', 12' Three-Point Hitch and Pull-Type Models Available
- High Capacity Meters for High Volume Landscape Customers
- Three-Point Hitch - Cat. II Free Link
- Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
- 9.5L x 15-6 Ply Tires on 8' Pull-Type Models
- 11L x 15-8 Ply Tires on 10' and 12' Pull-Type Models
- High Capacity Micro-Metered Large Seed Box
- Micro-Metered Small Seed Box
- Seed Box Sight Windows
- Electric Clutch Kit Standard
- 15.75" Gray Cast Iron Front Pulverizer Roller
- 11.5" Gray Cast Iron Rear Pulverizer Roller
- Greaseable Axle Bearings
- Turfmaker Sprockets for Rear Pulverizer Roller Available
- S-Tine Track Remover Kit Available
- Coil Tine Track Remover Kit Available
- Scraper Kit for Front Pulverizer Roller Available
- Seed Shaft Monitor Kit Available
Specs
| Model | SL-2101 |
| Approximate Weight | 2,840 lbs. (1,278 kg) |
| Working Width | 10 ft. 0 in. (3.0 m) |
| Transport Width | 13 ft. 5 in. (4.03 m) |
| Transport Height | 6 ft. 6 in. (2.0 m) |
| Road Clearance | 1 ft. 3 in. (0.4 m) |
| Overall Height | 5 ft. 3 in. (1.6 m) |
| Overall Length | 11 ft. 9 in. (3.6 m) |
| Seed Box | All Steel Construction with Cover |
| Seed Box Capacity - Meter Box | 19 bu. |
| Seed Meters | High Capacity Meter |
| Seed Meter Drive | Ground Driven |
| Seed Meter Spacing | 4.25 in. (108 mm) |
| Seed Delivery | Broadcast with Wind Deflector Tray |
| Pulverizer Roller - Front | 15.75 in. (400 mm) Gray Cast Iron |
| Pulverizer Roller - Rear | 11.5 in. (292 mm) Gray Cast Iron |
| Pulverizer Axle Bearings | Greaseable |
| Pulverizer Axle Size - Front | 12.75 in. (324 mm) |
| Pulverizer Axle Size - Rear | 8.625 in. (219 mm) |
| Hitch | Pull-Type with Hydraulic Transport |
| Hydraulic Equipment | Cylinders with Hoses to Hitch Point |
| Tire Size | 11L x 15-8 Ply Implement Rib |
| S-Tine Wheel Track Remover | Optional |
| Coil Tine Wheel Track Remover | Optional |
| Front Roller Scraper Kit | Optional |
| Turfmaker Sprockets | Optional |
| Electronic Acre Meter | Optional |
| Seed Shaft Monitor Kit | Optional |
| Small Seed Box Kit | Optional |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
