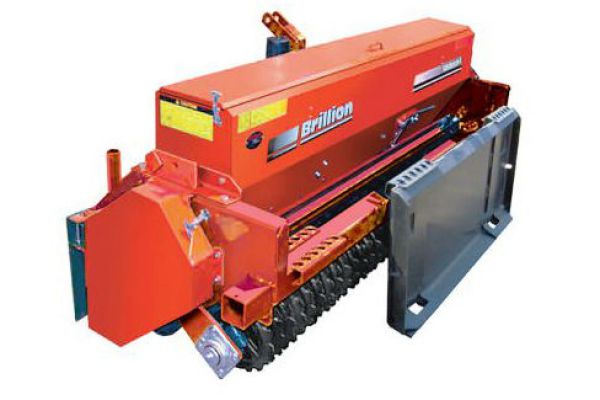

Brillion LSS-6

Double tap to zoom



Features

  • 5' and 6' Models
  • Three-Point Hitch - Cat. I, II Free Link
  • Three-Point Hitch - Cat. I, II Quick Coupler Hitch
  • Quick-Attach Skid Steer Mounting Plate on LSS6
  • Blade Agitator Seed Box
  • 11.5" Gray Cast Iron Front Pulverizer Roller
  • 9.5" Gray Cast Iron Rear Pulverizer Roller
  • Greaseable Axle Bearings
  • Lift Sling Kit Available
  • Turfmaker Sprockets for Rear Pulverizer Roller Available
  • Brush Agitator for Rear Seed Box Available

Specifications

Model LSS-6
Approximate Weight 1,242 lbs. (559 kg)
Working Width 6 ft. 0 in. (1.8 m)
Transport Width 7 ft. 0 in. (2.1 m)
Transport Height Dependent Upon Tractor
Overall Height 3 ft. 7 in. (1.08 m)2
Overall Length 2 ft. 6 in. (0.8 m)
Seed Box All Steel Construction with Cover
Seed Box Capacity - Agitator Box 4.5 bu.
Seed Meters Blade Agitator
Seed Meter Drive Ground Driven
Seed Opening Spacing 3 in. (76.2 mm)
Seed Delivery Broadcast with Wind Deflector Tray
Pulverizer Roller - Front 11.5 in. (292 mm) Gray Cast Iron
Pulverizer Roller - Rear 9.5 in. (241 mm) Gray Cast Iron
Pulverizer Axle Bearings Greaseable
Pulverizer Axle Size - Front 8.625 in. (219 mm)
Pulverizer Axle Size - Rear 1.75 in. (44.5 mm)
Coil Tine Wheel Track Remover Standard
Three-Point Hitch Cat. I - II Free Link; Cat. I, II Quick Coupler Hitch
Lift Sling Kit Optional
Electronic Acre Meter Kit Optional
Brush Agitator Kit Optional
Turfmaker Sprockets Optional
SMV Emblem Standard
Powder Coat Paint, Red Standard
Horsepower Requirements 35 HP (26.88 kW) and up
Recommended Operating Speed 3 to 5 MPH (5 to 8.3 km/h)
