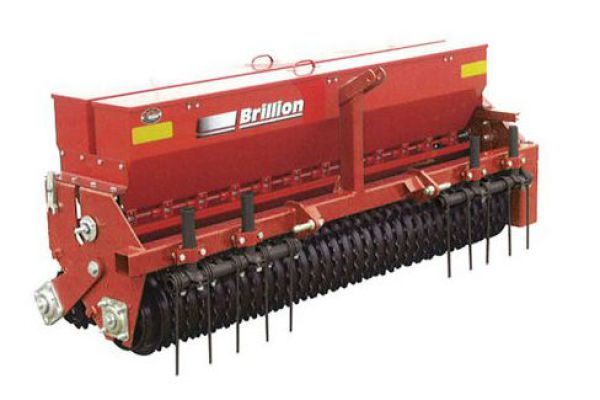

Brillion SSP-6

Double tap to zoom



Features

Three-Point Hitch Models - 4' to 6'

  • Three-Point Hitch - Cat. I, II Free Link
  • Three-Point Hitch - Cat. I, II Quick Coupler Hitch
  • Micro-Metered Front Seed Box
  • Blade Agitator in Rear Seed Box
  • 11.5" Gray Cast Iron Front Pulverizer Roller
  • 9.5" Gray Cast Iron Rear Pulverizer Roller
  • Greaseable Axle Bearings
  • Coil Tine Wheel Track Remover Standard
  • Lift Sling Kits Available
  • Speed Up Kit (Doubles Output) Available
  • Brush Agitator for Rear Seed Box Available

Specifications

Model SSP-6
Approximate Weight 1,100 lbs. (495 kg)
Working Width 6 ft. 0 in. (1.8 m)
Transport Width 7 ft. 0 in. (2.1 m)
Transport Height Dependent Upon Tractor
Overall Height 3 ft. 7 in. (1.08 m)2
Overall Length 2 ft. 6 in. (0.8 m)
Seed Box All Steel Construction with Cover
Seed Box Capacity - Meter Box 2.625 bu.
Seed Box Capacity - Agitator Box 2.625 bu.
Seed Meters "Micro-Meter" / Blade Agitator
Seed Meter Drive Ground Driven
Seed Meter/Opening Space 8 in. (203 mm) / 4 in. (102 mm)
Seed Delivery Broadcast with Wind Deflector Tray
Pulverizer Roller - Front 11.5 in. (292 mm) Gray Cast Iron
Pulverizer Roller - Rear 9.5 in. (241 mm) Gray Cast Iron
Pulverizer Axle Bearings Greaseable
Pulverizer Axle Size - Front 8.625 in. (219 mm)
Pulverizer Axle Size - Rear 1.75 in. (44.5 mm)
Three-Point Hitch Cat. I, II Free Link; Cat. I, II Quick Coupler Hitch
Coil Tine Track Remover Standard
Lift Sling Kit Optional
Electronic Acre Meter Kit Optional
Brush Agitator Kit for Brome Box Optional
Speed Up Kit (Doubles Output) Optional
SMV Emblem Standard
Powder Coat Paint, Red Standard
Horsepower Requirements 35 HP (26.88 kW) and up
Recommended Operating Speed 3 to 5 MPH (5 to 8.3 km/h)
