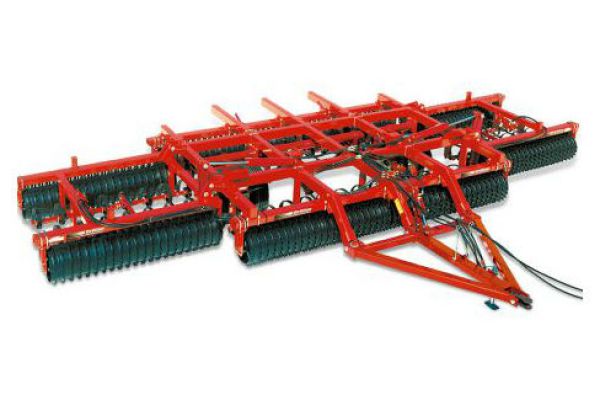

Brillion WLS-2603, WLCS-2603, WCLS-2603, WCCS-2603

Features
WL Series
- Flat Folding Models in Sizes from 21'8" to 30'
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Front Axle
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Rear Axle
- 4" Roller Axles with Sealed Bearings
- External Bearing Mount Allows for Easy Service
- Fully Adjustable Reversible Scrapers Standard for Rear Rollers Equipped with Notched Wheels
- Choice of Conventional "C" Teeth or "S-Tine" Teeth
- Teeth Spaced at 6"
- Maximum Depth of Operation 6"
- Flip-Flop Style Hitch
- Extra Long Hitch Accommodates Dual Wheel Tractors
- Hitch Point at Center Height of Front Roller Axle
- Coil Spring Counter Balance on 21'8" and 25' Models Provides Smooth, Jolt-Free Operation
- Integral Hydraulic Counter Balance on 30' Models
- Mechanical Transport Lock
- Frame Members Made of 4" x 6" Structural Steel Tubing Provide Structural Integrity & Reliability
- Heavy-Duty Transport Rockshaft with Dual Wheels
- 11L x 15-8 Ply Implment Rib Tires on 21'8" and 25' Models
- 12.5L x 16-12 Ply Implement Rib Tires on 30' Models
- Independent Hydraulic Tooth Control Standard Equipment
- Rear Hitch Available
- Land Leveler and V-Leveler Kits Available
- Front Roller Scrapers Available for Front Rollers Equipped with Notched Wheels
- Safety Warning Lights
- Powder Coat Paint
Specifications
Models | WLS-2603, WLCS-2603, WCLS-2603, WCCS-2603 |
Approximate Weight | WLS-2603: 9,594 lbs. (4,317 kg) |
WLCS-2603: 9,306 lbs. (4,188 kg) | |
WCLS-2603: 9,491 lbs. (4,271 kg) | |
WCCS-2603: 9,203 lbs. (4,141 kg) | |
Working Width | 21 ft. 8 in. (6.5 m) |
Transport Width | 13 ft. 11 in. (4.18 m) |
Transport Height | 6 ft. 2 in. (1.85 m) |
Overall Length Transport | 19 ft. 10 in. (5.95 m) |
Pulverizer Wheels Front | |
Type of Wheel | WLS-2603/WLCS-2603: 20 in. (500 mm) Notched Ductile Iron |
WCLS-2603/WCCS-2603: 20 in. (500 mm) Crowfoot Ductile Iron | |
Number of Wheels | WLS-2603/WLCS-2603: 64 |
WCLS-2603/WCCS-2603: 42 | |
Pulverizer Wheels Rear | |
Type of Wheel | WLS-2603/WCLS-2603: 20 in. (500 mm) Notched Ductile Iron |
WLCS-2603/WCCS-2603: 20 in. (500 mm) Crowfoot Ductile Iron | |
Number of Wheels | WLS-2603/WCLS-2603: 65 |
WLCS-2603/WCCS-2603: 43 | |
Rear Roller Scrapers | Standard on WLS-2603 & WCLS-2603 |
Roller Axle Size | 4 in. (102 mm) |
Type of Teeth | 12 mm "S-Tine" Teeth with 1.38 in. (35 mm) Reversible Point or 2.75 in. (70 mm) Shovel |
Number of Teeth | 41 |
Nominal Teeth Spacing | 6 in. (153 mm) |
Tooth Depth Control | Independent Depth Control Cylinders |
Maximum Tooth Depth of Operation | 6 in. (153 mm) |
Hitch | Pull-Type with Hydraulic Lift |
Tire Size | 11L x 15-8 Ply Implement Rib (Duals) |
Hydraulic Circuits Required | 2 |
Road Clearance | 9 in. (229 mm) |
Safety Warning Lights & SMV Emblem | Standard |
Rear Hitch | Optional |
Land Leveler Kit | Optional |
Front Roller Scraper Kit (Notched Rollers) | Optional on WLS-2603 & WLCS-2603 |
Safety Chain Kit | Standard |
Powder Coat Paint, Red | Standard |
V-Leveler Kit | Optional |
Independent Hydraulic Tooth Control | Standard |
Independent Wing Fold Hydraulic Plumbing Kit | Optional |
Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
