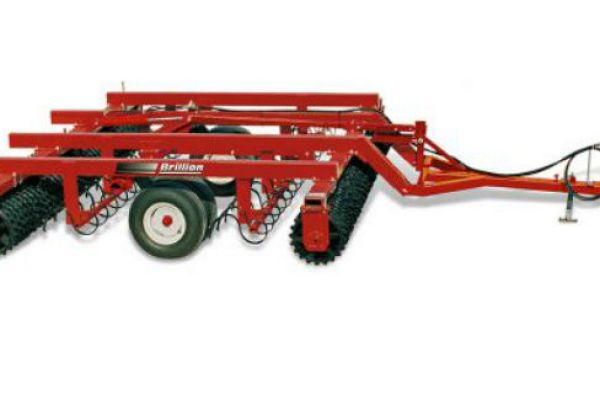

Brillion MLS-1803, MCLS-1803, MLCS-1803, MCCS-1803

Features
ML Series
- Rigid, Non-Folding Models Available in Sizes from 12'6" to 18'9"
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Front Axle
- Choice of Notched Ductile Iron or Crowfoot Ductile Iron Pulverizer Wheels on Rear Axle
- 4" Roller Axles with Sealed Bearings
- External Bearing Mount Allows for Easy Service
- Fully Adjustable Reversible Scrapers Standard for Rear Rollers Equipped with Notched Wheels
- Choice of Conventional "C" Teeth or "S-Tine" Teeth
- Teeth Spaced at 6"
- Maximum Depth of Operation 6"
- Flip-Flop Style Hitch
- Long Hitch Accommodates Dual Wheel Tractors
- Hitch Point at Center Height of Front Roller Axle
- Spring Loaded Counter Balance Provides Positive Machine Control
- Mechanical Transport Lock
- Frame Members Made of 4" x 6" Structural Steel Tubing Provide Structural Integrity & Reliability
- Heavy-Duty Transport Rockshaft with Dual Wheels
- 9.5L x 15-6 Ply Tires
- Independent Hydraulic Tooth Control Standard Equipment
- Rear Hitch Available
- Land Leveler and V-Leveler Kits Available
- Front Roller Scrapers Available for Front Rollers Equipped with Notched Wheels
- Safety Warning Lights
- Powder Coat Paint
Specifications
Models | MLS-1803, MCLS-1803, MLCS-1803, MCCS-1803 |
Approximate Weight | MLS-1803: 5,901 lbs. (2,655 kg) |
MCLS-1803: 5,876 lbs. (2,644 kg) | |
MLCS-1803: 5,722 lbs. (2,575 kg) | |
MCCS-1803: 5,697 lbs. (2,564 kg) | |
Working Width | 15 ft. 2 in. (4.55 m) |
Transport Width | 15 ft. 9 in. (4.73 m) |
Transport Height | 3 ft. 8 in. (1.1 m) |
Overall Length Transport | 19 ft. 10 in. (5.95 m) |
Pulverizer Wheels Front | |
Type of Wheel | MLS-1803/MLCS-1803: 20 in. (500 mm) Notched Ductile Iron |
MCLS-1803/MCCS-1803: 20 in. (500 mm) Crowfoot Ductile Iron | |
Number of Wheels | MLS-1803/MLCS-1803: 44 |
MCLS-1803/MCCS-1803: 30 | |
Pulverizer Wheels Rear | |
Type of Wheel | MLS-1803/MCLS-1803: 20 in. (500 mm) Notched Ductile Iron |
MLCS-1803/MCCS-1803: 20 in. (500 mm) Crowfoot Ductile Iron | |
Number of Wheels | MLS-1803/MCLS-1803: 45 |
MLCS-1803/MCCS-1803: 30 | |
Rear Roller Scrapers | Standard on MLS-1803 & MCLS-1803 |
Roller Axle Size | 4 in. (102 mm) |
Type of Teeth | 12 mm "S-Tine" Teeth with 1.38 in. (35 mm) Reversible Point or 2.75 in. (70 mm) Shovel |
Number of Teeth | 29 |
Nominal Teeth Spacing | 6 in. (153 mm) |
Tooth Depth Control | Independent Depth Control Cylinders |
Maximum Tooth Depth of Operation | 6 in. (153 mm) |
Hitch | Pull-Type with Hydraulic Lift |
Tire Size | 9.5L x 15-6 Ply Implement Rib (Duals) |
Road Clearance | 9 in. (229 mm) |
Safety Warning Lights & SMV Emblem | Standard |
Rear Hitch | Optional |
Land Leveler Kit | Optional |
Front Roller Scraper Kit (Notched Rollers) | Optional on MLS-1803 & MLCS-1803 |
Safety Chain Kit | Standard |
Powder Coat Paint | Standard |
V-Leveler Kit | Optional |
Independent Hydraulic Tooth Control | Standard |
Horsepower Requirements | 6 to 8 HP (4.5 to 6 kW) per ft. |
Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
