Apply NowBrillion WCC-3630-30

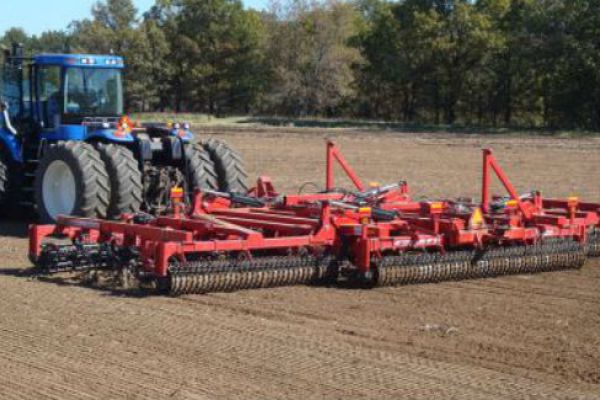

3630 Series WCC-3630-30
The 3630 Series, new to the Pulvi-Mulcher line-up from Brillion, features wider working widths, increased trash clearance and reduced downtime. The series includes two new models, available in 30’ and 36’6” working widths. The 30’ model weighs 80% more than the popular WL360 model for more clod crushing power. The 36’6... + Read More
Features
- Folding Models in 30’ and 36’6” Working Widths
- Choice of 20” Notched Ductile Iron, 20” Crowfoot Ductile Iron or 20” Optimizer® Ductile Iron Wheels on Front Pulverizer Axle
- Choice of 20” Notched Ductile Iron, 20” Crowfoot Ductile Iron or 20” Optimizer® Ductile Iron Wheels on Rear Pulverizer Axle
- 8” Roller Axels with Heavy-Duty Bearings to Improve Reliability and Reduce Down Time
- Fully Adjustable Reversible Scrapers Standard for Rear Rollers Equipped with Notched Wheels
- Heavy-Duty Two-Piece Edge Bent S-Tine Cultivator Teeth
- 2” Reversible Points
- Nominal Shank Spacing of 6”
- Maximum Depth of Operation 5”
- Under Frame Clearance of 25”
- Cat. III or IV Ring Hitch
- Extra Long Hitch Accommodates Dual Wheel Tractors
- Mechanical Transport Lock
- Frame Members Made of 6” x 8” Structural Steel Tubing Provide Structural Integrity and Reliability
- Heavy-Duty Transport Rockshaft with Dual Wheels
- (4) 380/55R x 16.5 Tires
- Independent Hydraulic Tooth Control Standard Equipment
- Rear Hitch Available
- Land Leveler and V-Leveler Kits Available
- Front Roller Scrapers Available for Front Pulverizer Rollers Equipped with Notched Wheels
- LED Safety Warning Lights
- Powder Coat Paint
Specs
| Model | WCC-3630-30 |
| Approximate Weight | 26,586 lbs. (12,059 kg) |
| Working Width | 30 ft. 0 in. (9.1 m) |
| Transport Width | 19 ft. 0 in. (5.8 m) |
| Transport Height | 12 ft. 10 in. (3.9 m) |
| Overall Length (Transport) | 26 ft. 0 in. (7.9 m) |
| Road Clearance | 15 in. (381 mm) |
| Type of Pulverizer Wheel - Front | 20 in. (500 mm) Crowfoot Ductile Iron |
| Number of Pulverizer Wheels - Front | 63 |
| Type of Pulverizer Wheel - Rear | 20 in. (500 mm) Crowfoot Ductile Iron |
| Number of Pulverizer Wheels - Rear | 63 |
| Rear Roller Scrapers | N/A |
| Roller Axle Size | 8 in. (203 mm) |
| Type of Shanks | Heavy-Duty Two-Piece S-Tine Shank 1.75 in. x 0.625 in. (44.5 x 15.9 mm) |
| Number of Shanks | 63 |
| Nominal Shank Spacing | 6 in. (152 mm) |
| Maximum Shank Depth of Operation | 5 in. (127 mm) |
| Under Frame Clearance | 25 in. (635 mm) |
| Spike Leveling Bar in Front of Rear Roller | Standard |
| Hitch | Pull-Type with Hydraulic Lift |
| Tire Size | (4) 380/55R x 16.5 |
| Hydraulic Circuits Required | 3 (+1 for Rear Hitch) |
| Rear Hitch | Optional |
| Front Roller Scraper Kit | N/A |
| Land Leveler Kit | Optional |
| V-Leveler Kit | Optional |
| Independent Hydraulic Tooth Control | Standard |
| LED Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint | Standard |
| Horsepower Requirements | 10 to 12 HP (7.5 to 8.9 kW) per ft. |
| Recommended Operating Speed | 6 to 8 MPH (10 to 13 km/h) |
