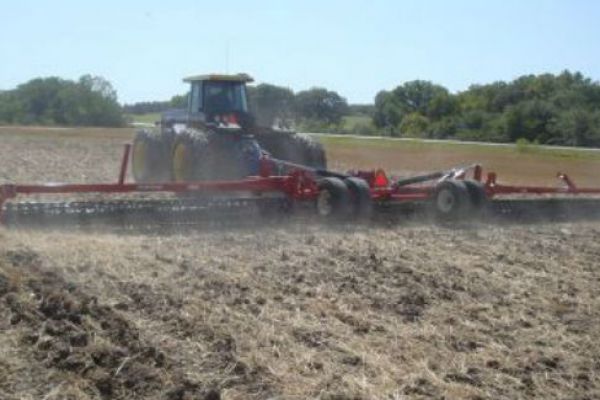

Brillion WFP44

Double tap to zoom



Features

Endless Options and Sizes to Accommodate Any Operation

  • Gray Iron Wheels Covered by Standard 1-Year Warranty
  • Ductile Iron Wheels Covered by 5-Year Limited Warranty
  • 1 ¾” Trunnion Bearings on X, XL, XXL and Wing Float Pulverizers Covered by 3-Year Limited Warranty
  • Scraper Kits Available for Notched Wheel Types and V-Style Wheels
  • Powder Coat Paint



WFP Series, Wing Float Pulverizer - 38' to 52' Models

  • Patented Wing Float Design
  • Working Widths From 38’ to 52’
  • Transport Heights Under 10'
  • Transport Width 17'5" on 38' to 46' Models
  • Transport Width 19’8” on 50’ Model
  • Transport Width 21’8” on 52’ Model
  • Telescoping Drawbar
  • 8" Pulverizer Axle Size
  • 1 ¾” Trunnion Bearings
  • Maintenance Free Rockshaft Bearings
  • Pulverizer Wheel Styles:
    • 20" Notched Ductile Iron
    • 20" Optimizer Ductile Iron
    • 20” Crowfoot Ductile Iron

Specifications

Model WFP44
Approximate Weight
(WFPDS) 20" Notched Ductile Iron Wheels with Scrapers 12,200 lbs. (5,534 kg)
(WFPD) 20" Notched Ductile Iron Wheels Excluding Scrapers 11,750 lbs. (5,330 kg)
(WFPO) 20" Optimizer Ductile Iron Wheels 12,400 lbs. (5,624 kg)
(WFPC) 20" Crowfoot Ductile Iron Wheels 10,575 lbs. (4,797 kg)
Approximate Tongue Weight
Drawbar Retracted, Transport 1,200 lbs. (544 kg)
Drawbar Extended, Transport 840 lbs. (381 kg)
Operation Under 200 lbs. (91 kg)
Working Width 44 ft. 4 in. (13.5 m)
Transport Width 17 ft. 5 in. (5.3 m)
Transport Height 9 ft. 0 in. (2.7 m)
Overall Length, Drawbar Retracted 20 ft. 0 in. (6.1 m)
Overall Length, Drawbar Extended 26 ft. 8 in. (8.1 m)
Road Clearance 15 in. (381 mm)
Mechanical Transport Lock Standard
Hydraulic Circuits Required 1
Number of Pulverizer Wheels
(WFPDS) 20" Notched Ductile Iron Wheels with Scrapers 135
(WFPD) 20" Notched Ductile Iron Wheels Excluding Scrapers 135
(WFPO) 20" Optimizer Ductile Iron Wheels 89
(WFPC) 20" Crowfoot Ductile Iron Wheels 89
Axle Size 8 in. (203 mm)
Hitch Pull-Type with Hydraulic Transport
Tire Size 12.5 x 15 FI Tires on 8 Bolt Rims
Scraper Kits Standard on Models with "S"
WFP Float Lock Kit Optional
Telescoping Drawbar Standard
Electronic Acre Meter Kit Optional
LED Safety Warning Lights & SMV Emblem Standard
Safety Chain Kit Standard
Powder Coat Paint, Red Standard
Horsepower Requirements 3 to 5 HP per ft. (2.2 to 3.7 kW per m)
Horsepower Requirements As Companion Tool 1 to 3 HP per ft. (0.75 to 2.2 kW per m)
Recommended Operating Speed 3 to 8 MPH (4.8 to 12.9 km/h)
