Features

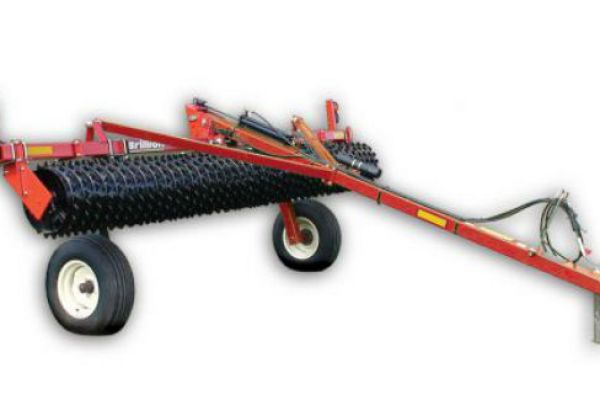

PT Series, Rotating Frame Transport Models
- Working Widths From 10’ to 20’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron
- 20” Optimizer Ductile Iron
- 20” Crowfoot Ductile Iron
- 22” V-Style Ductile Iron
Specs
| Product Attributes | PT16 |
| Approximate Weight | |
| (PDTS) 20" Notched Ductile Iron Wheels with Scrapers | 3,261 lbs. (1,479 kg) |
| (PDT) 20" Notched Ductile Iron Wheels | 3,089 lbs. (1,401 kg) |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 2,909 lbs. (1,320 kg) |
| (POT) 20" Optimizer Ductile Iron Wheels | 3,472 lbs. (1,575 kg) |
| (PVTS) 22" V-Style Ductile Iron Wheels with Scrapers | 3,743 lbs. (1,698 kg) |
| (PVT) 22" V-Style Ductile Iron Wheels | 3,380 lbs. (1,533 kg) |
| Working Width | 16 ft. 0 in. (4.8 m) |
| Transport Width | 17 ft. 2 in. (5.2 m) |
| Transport Height | 6 ft. 0 in. (1.8 m) |
| Overall Length, Transport | 12 ft. 6 in. (3.8 m) |
| Overall Length, Operation | 17 ft. 4 in. (5.3m) |
| Number of Pulverizer Wheels | |
| (PDT) 20" Notched Ductile Iron Wheels | 48 |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 32 |
| (POT) 20" Optimizer Ductile Iron Wheels | 32 |
| (PVT) 22" V-Style Ductile Iron Wheels (6 in. Spacing) | 32 |
| Axle Size | |
| (PDT) 20" Notched Ductile Iron Wheels | 8 in. (203 mm) |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 8 in. (203 mm) |
| (POT) 20" Optimizer Ductile Iron Wheels | 8 in. (203 mm) |
| (PVT) 22" V-Style Ductile Iron Wheels | 4.5 in. (114 mm) |
| Roller Center Bearing | |
| (PDT) 20" Notched Ductile Iron Wheels | No |
| (PCT) 20" Crowfoot Ductile Iron Wheels | No |
| (POT) 20" Optimizer Ductile Iron Wheels | No |
| (PVT) 22" V-Style Ductile Iron Wheels | Yes |
| Drawbar | Pull-Type with Hydraulic Transport |
| Tire Size | 9.5L x 15-8 Ply Implement Rib |
| Scraper Kits | Standard on Models with 'S'; Optional on PDT and PVT Models |
| Rear Hitch Kit | Optional |
| Dual Wheel Kit | Optional |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 60 HP (44.8 kW) |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
