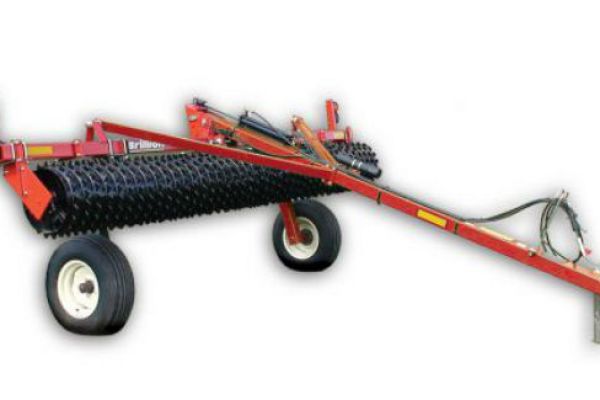

Brillion PT15

Features
PT Series, Rotating Frame Transport Models
- Working Widths From 10’ to 20’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron
- 20” Optimizer Ductile Iron
- 20” Crowfoot Ductile Iron
- 22” V-Style Ductile Iron
Specifications
Model | PT15 |
Approximate Weight | |
(PDT) 20" Notched Ductile Iron Wheels | N/A |
(PDCT) 20" Crowfoot Ductile Iron Wheels | N/A |
(POT) 20" Optimizer Ductile Iron Wheels | 2,642 lbs. (1,189 kg) |
(PVT) 22" V-Style Ductile Iron Wheels | 3,006 lbs. (1,363 kg) |
Working Width | 15 ft. 0 in. (4.6 m) |
Transport Width | 17 ft. 2 in. (5.15 m) |
Transport Height | 6 ft. 0 in. (1.8 m) |
Overall Length, Transport | 14 ft. 3 in. (4.27 m) |
Overall Length, Operation | 16 ft. 9 in. (5 m) |
Number of Pulverizer Wheels | |
(PDT) 20" Notched Ductile Iron Wheels | N/A |
(PDCT) 20" Crowfoot Ductile Iron Wheels | N/A |
(POT) 20" Optimizer Ductile Iron Wheels | 30 |
(PVT) 22" V-Style Ductile Iron Wheels (6 in. Spacing) | 30 |
Axle Size | |
(PDT) 20" Notched Ductile Iron Wheels | N/A |
(PDCT) 20" Crowfoot Ductile Iron Wheels | N/A |
(POT) 20" Optimizer Ductile Iron Wheels | 4.5 in. (114 mm) |
(PVT) 22" V-Style Ductile Iron Wheels | 4.5 in. (114 mm) |
Hitch | Pull-Type with Hydraulic Transport |
Tire Size | 9.5L x 15-6 Ply Implement Rib |
Scraper Kits | Optional for PDT & PVT Series |
Rear Hitch Kit | Optional |
Dual Wheel Kit | Optional |
LED Safety Warning Lights & SMV Emblem | Standard |
Safety Chain Kit | Standard |
Powder Coat Paint, Red | Standard |
Horsepower Requirements | 60 HP (44.8 kW) |
Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
