Features

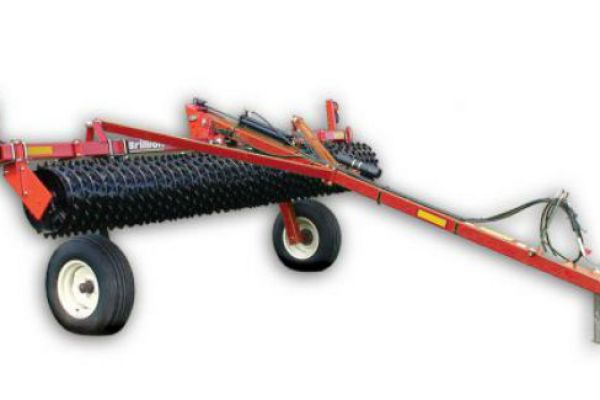

PT Series, Rotating Frame Transport Models
- Working Widths From 10’ to 20’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron
- 20” Optimizer Ductile Iron
- 20” Crowfoot Ductile Iron
- 22” V-Style Ductile Iron
Specs
| Product Attributes | PT12 |
| Approximate Weight | |
| (PDTS) 20" Notched Ductile Iron Wheels with Scrapers | 2,680 lbs. (1,216 kg) |
| (PDT) 20" Notched Ductile Iron Wheels | 2,535 lbs. (1,150 kg) |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 2,403 lbs. (1,090 kg) |
| (POT) 20" Optimizer Ductile Iron Wheels | 2,826 lbs. (1,282 kg) |
| (PVTS) 22" V-Style Ductile Iron Wheels with Scrapers | 2,993 lbs. (1,358 kg) |
| (PVT) 22" V-Style Ductile Iron Wheels | 2,723 lbs. (1,235 kg) |
| Working Width | 12 ft. 0 in. (3.6 m) |
| Transport Width | 13 ft. 2 in. (3.9 m) |
| Transport Height | 6 ft. 0 in. (1.8 m) |
| Overall Length, Transport | 12 ft. 6 in. (3.8 m) |
| Overall Length, Operation | 17 ft. 4 in. (5.3m) |
| Number of Pulverizer Wheels | |
| (PDT) 20" Notched Ductile Iron Wheels | 36 |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 24 |
| (POT) 20" Optimizer Ductile Iron Wheels | 24 |
| (PVT) 22" V-Style Ductile Iron Wheels (6 in. Spacing) | 24 |
| Axle Size | |
| (PDT) 20" Notched Ductile Iron Wheels | 8 in. (203 mm) |
| (PCT) 20" Crowfoot Ductile Iron Wheels | 8 in. (203 mm) |
| (POT) 20" Optimizer Ductile Iron Wheels | 8 in. (203 mm) |
| (PVT) 22" V-Style Ductile Iron Wheels | 4.5 in. (114 mm) |
| Roller Center Bearing | |
| (PDT) 20" Notched Ductile Iron Wheels | No |
| (PCT) 20" Crowfoot Ductile Iron Wheels | No |
| (POT) 20" Optimizer Ductile Iron Wheels | No |
| (PVT) 22" V-Style Ductile Iron Wheels | No |
| Drawbar | Pull-Type with Hydraulic Transport |
| Tire Size | 9.5L x 15-8 Ply Implement Rib |
| Scraper Kits | Standard on Models with 'S'; Optional on PDT and PVT Models |
| Rear Hitch Kit | Optional |
| Dual Wheel Kit | Optional |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 50 HP (40.3 kW) |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
