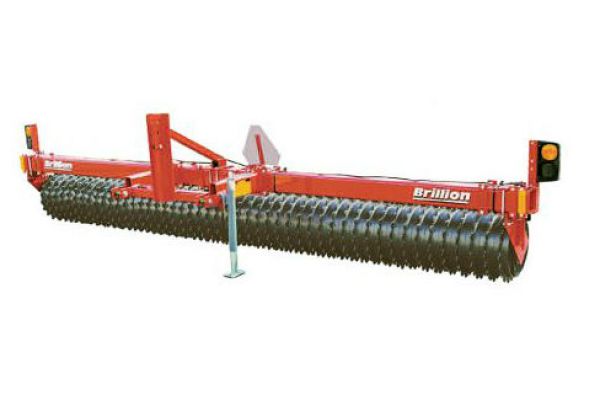

Brillion PP6

Features
PP Series, Three-Point Hitch Models
- Working Widths From 5’ to 20’
- Cat. I Three-Point Hitch on 5' to 7' Models
- Cat. I, II Three-Point Hitch on 8' to 20' Models
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron - 5' to 20' Models
- 16" Notched Gray Iron - 5' to 8' Models
- 16" Crowfoot Gray Iron - 5' to 8' Models
- 20" Optimizer Ductile Iron - 10' to 20' Models
Specifications
Model | PP6 |
Approximate Weight | |
(PPM) 16" Notched Gray Iron Wheels | 788 lbs. (355 kg) |
(PPD) 20" Notched Ductile Iron Wheels | 734 lbs. (333 kg) |
(PPC) 16" Crowfoot Gray Iron Wheels | 800 lbs. (360 kg) |
(PPO) 20" Optimizer Ductile Iron Wheels | N/A |
Working Width | 6 ft. 0 in. (1.8 m) |
Transport Width | 6 ft. 8 in. (2.0 m) |
Transport Height | Dependent Upon Tractor |
Overall Length | 2 ft. 0 in. (600 mm) |
Number of Pulverizer Wheels | |
(PPM) 16" Notched Gray Iron Wheels | 18 |
(PPD) 20" Notched Ductile Iron Wheels | 18 |
(PPC) 16" Crowfoot Gray Iron Wheels | 12 |
(PPO) 20" Optimizer Ductile Iron Wheels | N/A |
Axle Size | |
(PPM) 16" Notched Gray Iron Wheels | 4 in. (100 mm) |
(PPD) 20" Notched Ductile Iron Wheels | 4 in. (100 mm) |
(PPC) 16" Crowfoot Gray Iron Wheels | 4 in. (100 mm) |
(PPO) 20" Optimizer Ductile Iron Wheels | N/A |
Three-Point Hitch | Cat. I |
Pull-Type Hitch | Optional |
Scraper Kits | Optional for PPM & PPD Series |
S-Tine Track Remover Kit | N/A |
Rear Hitch | N/A |
LED Safety Warning Lights & SMV Emblem | SMV Emblem Only |
Powder Coat Paint, Red | Standard |
Horsepower Requirements | 35 HP (26.88 kW) and up |
Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
