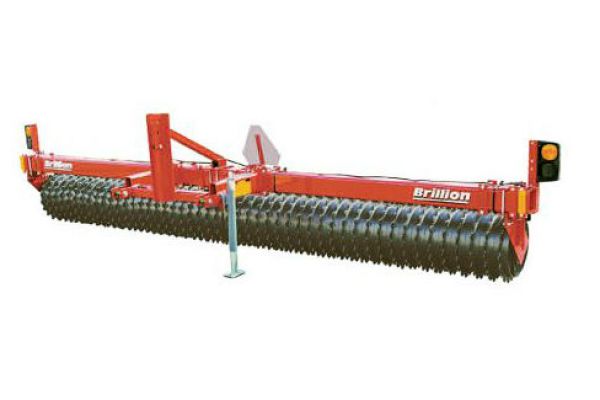

Brillion PP16

Double tap to zoom



Features

PP Series, Three-Point Hitch Models

  • Working Widths From 5’ to 20’
  • Cat. I Three-Point Hitch on 5' to 7' Models
  • Cat. I, II Three-Point Hitch on 8' to 20' Models
  • Pulverizer Wheel Styles:
    • 20" Notched Ductile Iron - 5' to 20' Models
    • 16" Notched Gray Iron - 5' to 8' Models
    • 16" Crowfoot Gray Iron - 5' to 8' Models
    • 20" Optimizer Ductile Iron - 10' to 20' Models

Specifications

Model PP16
Approximate Weight
(PPM) 16" Notched Gray Iron Wheels N/A
(PPD) 20" Notched Ductile Iron Wheels 2,386 lbs. (1,074 kg)
(PPC) 16" Crowfoot Gray Iron Wheels N/A
(PPO) 20" Optimizer Ductile Iron Wheels 2,607 lbs. (1,173 kg)
Working Width 16 ft. 0 in. (4.8 m)
Transport Width 17 ft. 2 in. (6.2 m)
Transport Height Dependent Upon Tractor
Overall Length 4 ft. 3 in. (1.27 m)
Number of Pulverizer Wheels
(PPM) 16" Notched Gray Iron Wheels N/A
(PPD) 20" Notched Ductile Iron Wheels 48
(PPC) 16" Crowfoot Gray Iron Wheels N/A
(PPO) 20" Optimizer Ductile Iron Wheels 32
Axle Size
(PPM) 16" Notched Gray Iron Wheels N/A
(PPD) 20" Notched Ductile Iron Wheels 4 in. (100 mm)
(PPC) 16" Crowfoot Gray Iron Wheels N/A
(PPO) 20" Optimizer Ductile Iron Wheels 4.5 in. (114 mm)
Three-Point Hitch Cat. I, II
Pull-Type Hitch N/A
Scraper Kits Optional for PPD Series
S-Tine Track Remover Kit Optional
Rear Hitch Optional
LED Safety Warning Lights & SMV Emblem Standard
Powder Coat Paint, Red Standard
Horsepower Requirements 75 HP (56 kW)
Recommended Operating Speed 3 to 6 MPH (5 to 10 km/h)
