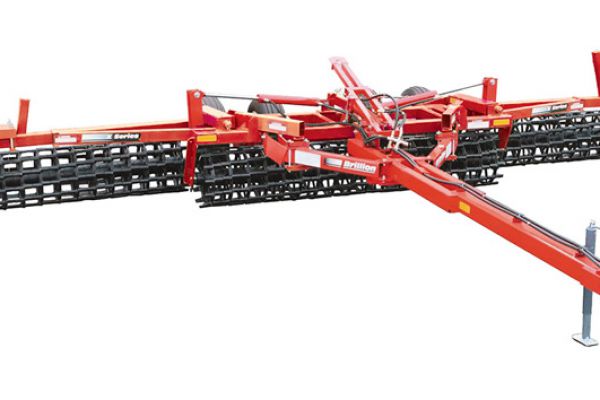

Apply NowBrillion P16
P Series, Pull-Type/No Transport Models P16
The Brillion Pulverizer has been synonymous with quality seedbed preparation for well over 100 years.
Features
P Series, Pull-Type/No Transport Models
- Working Widths From 5’ to 16’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron - 5' to 16' Models
- 16” Notched Gray Iron - 5’ to 8’ Models
- 16” Crowfoot Gray Iron - 5’ to 8’ Models
- 20” Crowfoot Ductile Iron - 10’ to 16’ Models
Specs
| Product Attributes | P16 |
| Approximate Weight | |
| (PDS) 20" Notched Ductile Iron Wheels with Scrapers | 2,961 lbs. (1,343 kg) |
| (PD) 20" Notched Ductile Iron Wheels Excluding Scrapers | 2,776 lbs. (1,259 kg) |
| (PC) 20" Crowfoot Ductile Iron Wheels | 2,596 lbs. (1,178 kg) |
| Working Width | 16 ft. 0 in. (4.8 m) |
| Transport Width | 17 ft. 2 in. (6.2 m) |
| Transport Height | 3 ft. 0 in. (1.0 m) |
| Overall Length | 15 ft. 0 in. (4.6 m) |
| Number of Pulverizer Wheels | |
| (PDS) 20" Notched Ductile Iron Wheels with Scrapers | 48 |
| (PD) 20" Notched Ductile Iron Wheels Excluding Scrapers | 48 |
| (PC) 20" Crowfoot Ductile Iron Wheels | 32 |
| Axle Size | 8 in. (203 mm) |
| Hitch | Pull-Type/No Transport |
| Scraper Kits | Optional for PD Series |
| Hydraulic Transport Kit | Optional |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 60 HP (44.8 kW) and up |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
