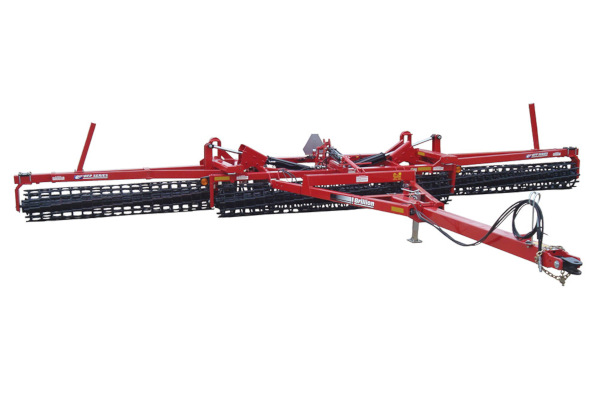

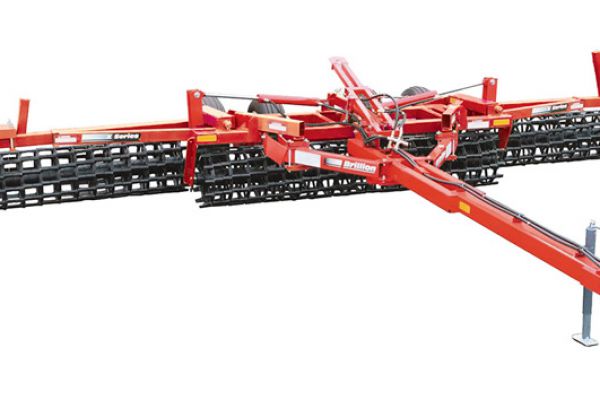

Brillion P14

Features
P Series, Pull-Type/No Transport Models
- Working Widths From 5’ to 16’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron - 5' to 16' Models
- 16” Notched Gray Iron - 5’ to 8’ Models
- 16” Crowfoot Gray Iron - 5’ to 8’ Models
- 20” Crowfoot Ductile Iron - 10’ to 16’ Models
Specifications
Model | P14 |
Approximate Weight | |
(PM) 16" Notched Gray Iron Wheels | N/A |
(PD) 20" Notched Ductile Iron Wheels | 2,001 lbs. (900 kg) |
(PC) 16" Crowfoot Gray Iron Wheels | N/A |
(PDC) 20" Crowfoot Ductile Iron Wheels | 1,988 lbs. (894 kg) |
Working Width | 14 ft. 0 in. (4.2 m) |
Transport Width | 15 ft. 2 in. (5.4 m) |
Transport Height | 3 ft. 0 in. (914 mm) |
Overall Length | 14 ft. 3 in. (5.1 m) |
Number of Pulverizer Wheels | |
(PM) 16" Notched Gray Iron Wheels | N/A |
(PD) 20" Notched Ductile Iron Wheels | 42 |
(PC) 16" Crowfoot Gray Iron Wheels | N/A |
(PDC) 20" Crowfoot Ductile Iron Wheels | 28 |
Axle Size | 4 in. (100 mm) |
Hitch | Pull-Type/No Transport |
Scraper Kits | Optional for PD Series |
Hydraulic Transport Kit | Optional |
LED Safety Warning Lights & SMV Emblem | Standard |
Safety Chain Kit | Standard |
Powder Coat Paint, Red | Standard |
Horsepower Requirements | 60 HP (44.8 kW) |
Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
