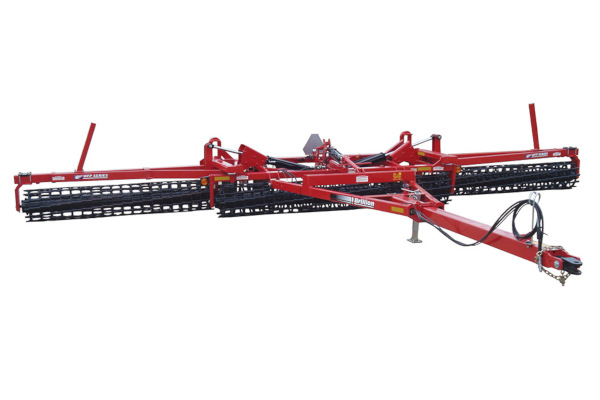

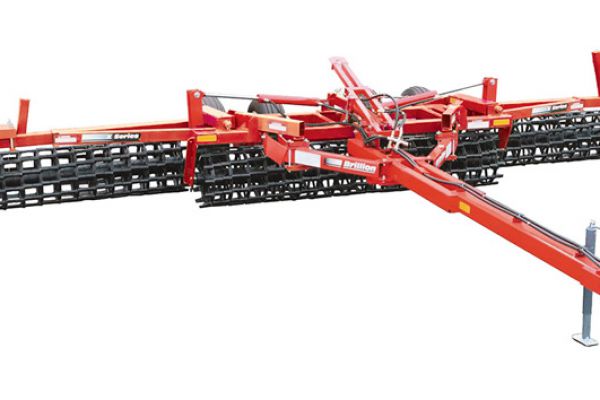

Call UsBrillion P10
P Series, Pull-Type/No Transport Models P10
Overview:
The Brillion Pulverizer has been synonymous with quality seedbed preparation for well over 100 years.
Features
P Series, Pull-Type/No Transport Models
- Working Widths From 5’ to 16’
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron - 5' to 16' Models
- 16” Notched Gray Iron - 5’ to 8’ Models
- 16” Crowfoot Gray Iron - 5’ to 8’ Models
- 20” Crowfoot Ductile Iron - 10’ to 16’ Models
Specifications
| Model | P10 |
| Approximate Weight | |
| (PM) 16" Notched Gray Iron Wheels | N/A |
| (PD) 20" Notched Ductile Iron Wheels | 1,567 lbs. (705 kg) |
| (PC) 16" Crowfoot Gray Iron Wheels | N/A |
| (PDC) 20" Crowfoot Ductile Iron Wheels | 1,449 lbs. (652 kg) |
| Working Width | 10 ft. 0 in. (3 m) |
| Transport Width | 11 ft. 2 in. (3.4 m) |
| Transport Height | 3 ft. 0 in. (914 mm) |
| Overall Length | 14 ft. 3 in. (5.1 m) |
| Number of Pulverizer Wheels | |
| (PM) 16" Notched Gray Iron Wheels | N/A |
| (PD) 20" Notched Ductile Iron Wheels | 30 |
| (PC) 16" Crowfoot Gray Iron Wheels | N/A |
| (PDC) 20" Crowfoot Ductile Iron Wheels | 20 |
| Axle Size | 4 in. (100 mm) |
| Hitch | Pull-Type/No Transport |
| Scraper Kits | Optional for PD Series |
| Hydraulic Transport Kit | Optional |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 50 HP (40.3 kW) |
| Recommended Operating Speed | 3 to 6 MPH (5 to 10 km/h) |
