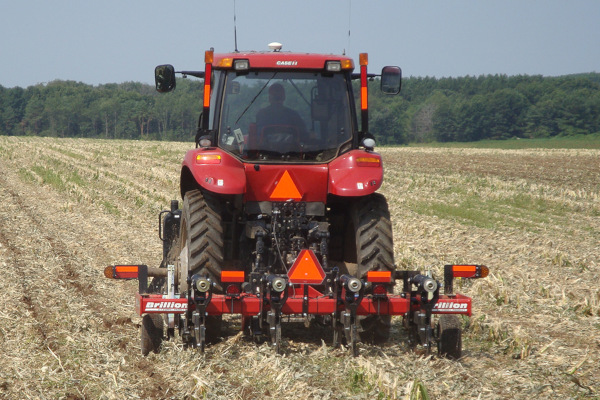

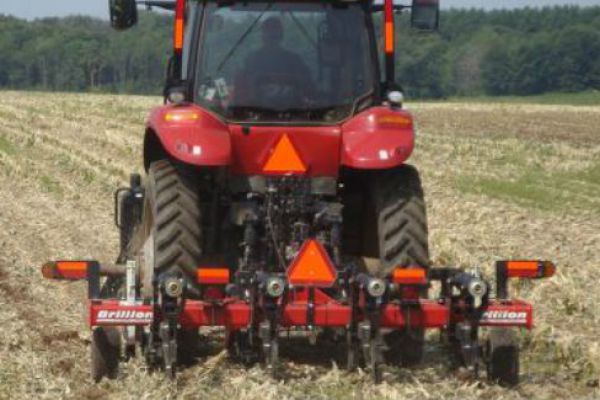

Brillion 2511ZCRF-8 for sale at Coastal Tractor, California

Double tap to zoom

Brillion 2511ZCRF-8 for sale at Coastal Tractor, California



Rugged and Durable
All tillage tools need to be built to handle the stress of the fast paced industry of today. However, deep tillage machines with depth capacities well below the normal operating depths need to be especially tough. In many instances these tools will be operating in profiles that have never been touched by a tillage tool before. The Zone Commander has what it takes.

The Frame
Built with 6” x 4” structural steel tubing, the robotically welded frame is the foundation for the heavy-duty Cat. II, III or IV three-point hitch. The robust frame is the anchor for the lead coulters that start the tillage process. The rear bar of the frame supports the Zone Commander’s shank assemblies.

The Shank Mount
The Zone Commander shank mounts are built to withstand the rigorous torture that operating in unknown soil profiles can dish out. The auto-reset shank assemblies allow for 3,500 lbs. of point load and 17” of trip height. Rigid shear bolt models are also available for areas with minimal soil obstructions.

The Shank Leg
The heart and soul of the Zone Commander is the shank leg, which cuts a narrow slot into the soil profile. The geometry of the shank leg and the shape of the point combine to lift and lower the soil between the slots and develop a network of horizontal cracks and breaks between the shanks. This slot along with the cracks and breaks created in the growth profile allow water and oxygen to infiltrate the soil to enhance plant growth for the next season. The depth of the slot is determined by how deep and thick the compaction layer is. This process is instrumental in keeping the biological environment favorable for residue decomposition.

Versatility in Options
The Zone Commander can be equipped with either auto-reset shank assemblies or rigid shear bolt shanks. Shank leg options include the 1 ¼” straight leg, the 1 ¼” parabolic leg, or the ¾” low disturbance shank. Spring cushion lead coulters with different blade options cut the residue and slice the upper layers in the soil profile ahead of the shanks. Easily adjustable gauge wheels allow for quick, positive depth changes for different conditions. The Zone Commander is available in 3 to 7 shank non-folding models and in 7, 8 and 9 shank folding models.

Your Investment
The Zone Commander is more than just another ripper. The Zone Commander can be an integral part of almost any type of cropping scenario. Even though these machines were initially designed for deep in-line tillage, some customers use the Zone Commander for incorporation practices such as sludge and manure application. Others have utilized the parabolic shank leg option for more disturbance on the soil surface. Still others have opted for the low disturbance shank legs for the absolute least amount of surface disturbance. From true no-tillers to conventional tillage aficionados, the Zone Commander and its concept of compaction management is a yield enhancement investment.

The Brillion Zone Commander…one machine…widely diversified…your investment.

Extra Tough Features For Deep Tillage
•6” x 4” Double Bar Frame
•Cat. II, III Narrow Three-Point Hitch for Narrow Non-Folding Models
•Cat. III, IV Three-Point Hitch for Standard Non-Folding Models and Folding Models
•40 ½” Under Frame Clearance
•Maximum Working Depth of 20”
•Heavy-Duty Coulter Assemblies with 22” Smooth Blades
•600 lbs. of Down Pressure on Coulter Assemblies
•Coulter Assemblies - 6” Trip Height
•Screw-Type Adjustable Gauge Wheels with 20.5 x 8-10, 8 Ply Tires
•Parking Stands
•Powder Coat Paint
•LED Warning Lights & SMV Emblem

Versatility & Reliability
•Auto-Reset or Rigid Shear Bolt Shank Assemblies
•Choice of Straight Leg Shanks, Parabolic Shanks or Low Disturbance Shanks
•Variety of Points and Wearstrips Available
•17” Trip Height on Auto-Reset Models
•3,500 lbs. of Point Load on Auto-Reset Models
•Options Available for Coulter Assemblies


Model 2511ZCRF-8
Approximate Weight 6,395 lbs. (2,901 kg)
Working Width 20 ft. 0 in. (6.1 m)
Transport Width 15 ft. 0 in. (4.6 m)
Frame Type Standard Folding
Frame Structure 6 in. x 4 in. (152 x 102 mm) Double Bar Frame
Frame Construction Laser Cut Components; Robotically Welded
Frame Extensions 12 in. (305 mm) Bolt-On
Coulter Assemblies Standard
Number of Coulters 8
Coulter Blade Diameter 22 in. (559 mm) Smooth Blade (Standard)
Coulter Protection Adjustable Spring Cushion
Coulter Down Pressure 600 lbs. (272 kg)
Coulter Trip Height 6 in. (152 mm)
22 in. Ripple Coulter Optional
22 in. Pyramid Coulter Optional
Number of Shanks 8
Shank Type Rigid Shear Bolt
Shear Bolt Size 0.625 in. x 5.5 in. (15.9 x 140 mm) Grade 5
Shank Leg Type* 1.25 in. x 5 in. x 36 in. (32.8 x 127 x 914 mm) Straight Leg Shank
  1.25 in. x 4 in. (32.8 x 102 mm) Parabolic Shank
  0.75 in. x 6 in. x 36 in. (19 x 152 x 914 mm) Low Disturbance Shank
Shank Spacing 30 in. (762 mm)
Maximum Shank Working Depth 20 in. (508 mm)
Under Frame Clearance 40.5 in. (1.0 m)
Points for Straight Leg Shanks 2 in. (50.8 mm) V-Shaped Cast C.A.D.I. Point (Standard)
Wearstrips for Straight Leg Shanks C.A.D.I. Reversible Wearstrip (Standard)
Points for Parabolic Shanks 2.375 in. (60.3 mm) V-Cap C.A.D.I. Point (Standard)
  7 in. (178 mm) Wing Point (Optional)
Wearstrips for Parabolic Shanks C.A.D.I. Wearstrip (Standard)
Points for Low Disturbance Shanks 2 in. (50.8 mm) V-Shaped Cast Point (Standard)
Wearstrips for Low Disturbance Shanks 0.75 in. (19 mm) Wearstrip (Standard)
Gauge Wheels (4) Standard
Gauge Wheel Type Adjustable Screw Type
Gauge Wheel Hubs 6-Bolt
Gauge Wheel Tire Size 20.5 x 8-10, 8 Ply Tires
Three-Point Hitch Cat. III, IV
Coverboard Kit Optional
12 in. Offset Shank Mounts Optional
Rear Hitch Optional
Berm Tucker/Closing Wheel Assembly Optional
Parking Stands Standard
Powder Coat Paint, Red Standard
LED Warning Lights & SMV Emblem Standard
Horsepower Requirements 30 to 40 HP (22 to 30 kW) Per Shank
Recommended Operating Speed 3 to 5 MPH (4.8 to 8.0 km/h)
