Apply NowBrillion CDA73-1

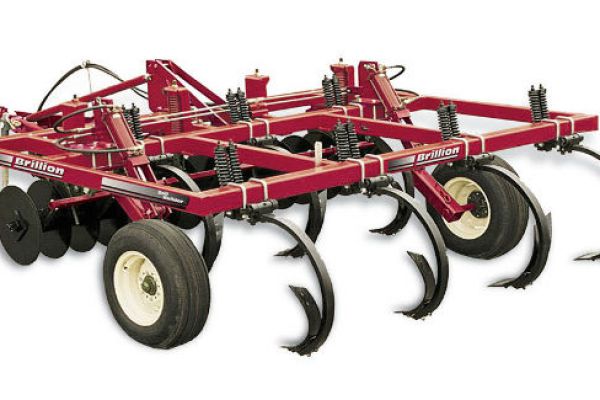

Soil Builder CDA73-1
The CD models are the original Soil Builders. A single, manually adjustable gang of coulters with 7 ½” spacing in the front of the machine starts the tillage process. Two ranks of chisel shanks are supported on a weighted frame that allow for 15” shank spacing. The shank and coulter spacing allow one coulter to lead ea... + Read More
Features
Advanced Solutions to High Residue Problems
- 5 to 13 Shank Rigid Frame Models Available
- Flip-Flop Style Hitch
- A-Frame Drawbar
- Ratchet Jack Frame Leveling
- Single Point Depth Control
- 4" x 4" Square Tube Weighted Frame
- 29" Under Frame Clearance
- Walking Tandem Axles Provide for a Smooth Ride (Model Dependent)
- 20" Coulter Blades Spaced at 7.5"
- 7.5" Solid Cast Iron Spools Provide Extra Weight to Cut Through the Toughest Residue
- 1.5" Square Gang Bolt Prevents Coulters from Sliding in Wet Conditions
- Hydraulic Depth Control for Coulters (Model Dependent)
- Dual Nested Spring Shanks Trip up to 5.5"
- Spring Pressure/Trip Resistance is Adjustable from 550 to 825 lbs.
- Maximum Operating Depth is 10"
- One Piece 4" Twisted Shovels Standard Equipment
- Safety Warning Lights
- Powder Coat Paint
Specs
| Model | CDA73-1 |
| Approximate Weight | 4,481 lbs. (2,033 kg) |
| Working Width | 8 ft. 9 in. (2.67 m) |
| Transport Width | 9 ft. 7 in. (2.92 m) |
| Transport Height | 5 ft. 2 in. (1.58 m) |
| Overall Length | 16 ft. 11 in. (5.16 m) |
| Number of Coulter Blades | 15 |
| Coulter Blade Diameter | 20 in. (508 mm) |
| Coulter Blade thickness | 7 ga. |
| Coulter Blade Spacing | 7.5 in. (191 mm) |
| Coulter Bearings | Self-Aligning Flange Type |
| Coulter Protection | Compression Coil Spring |
| Coulter Gang Bolt | 1.5 in. (38 mm) Square |
| Number of Shanks | 7 |
| Shank Mount | Dual Nested Spring |
| Shank Type | Parabolic |
| Shank Spacing | 15 in. (381 mm) |
| Shank Working Depth | Maximum of 10 in. (254 mm) |
| Spring Pressure/Trip Resistance | 550 lbs. to 825 lbs. (248 kg to 371 kg) |
| Chisel Points Available | 4 in. (102 mm) Twisted Shovels |
| Under Frame Clearance | 29 in. (737 mm) |
| Frame Structure | 4 in. x 4 in. x .25 in. (102 x 102 x 6.35 mm) |
| Rock-shaft Pivot Bearings | Two Piece Cast Iron |
| Transport Axle Type | Single Tire |
| Main Frame Cylinders | 3 in. x 8 in. (76 x 203 mm) |
| Main Frame Cylinder Control | External Depth Stop |
| Coulter Depth Cylinders | N/A - Manual |
| Coulter Depth Cylinder Control | N/A |
| Tires | (2) 11L x 15-8 Ply |
| Hitch Pin Hole Diameter | 1.563 in. (40 mm) Flip-Flop Style Hitch |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 15 to 20 HP (11 to 15 kW) per Shank |
| Recommended Operating Speed | 5 to 6.5 MPH (8 to 10.5 km/h) |
