Specializing in farm equipment sales, parts, and service.

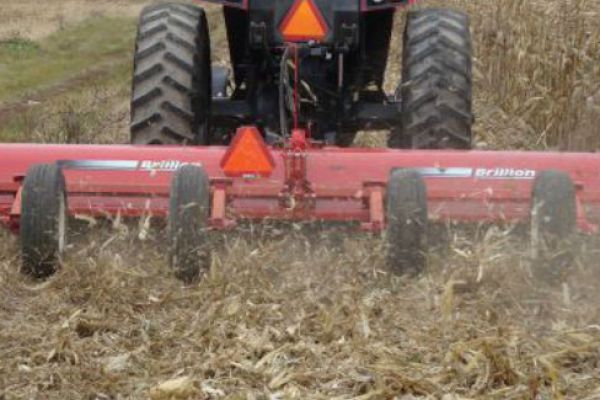

Brillion FSC1806-1

Double tap to zoom



Features

Cut & Shred with Ease

  • 12' & 15' Sizes Available
  • Short Coupled Adjustable Hitch
  • Leveling Ratchet Jack
  • Heavy-Duty PTO Drive (540 or 1000 RPM Models Available) with Over Running Clutch
  • Fully Enclosed Drive Lines and Belts
  • Twin Triple Matched Belt Rotor Drives
  • End Drive Shields are Ventilated to Keep the Belt Drive Running Cool
  • 1/4" Thick Shroud
  • Rubber Shields Contain Debris Under the Hood
  • 3" x 8" Hydraulic Cylinder and Hoses Standard Equipment
  • Equipped with 9.5L x 15-6 Ply Tires
  • 12' Models Feature Two Wheel Kits
  • 15' Models Feature Four Wheel Kits
  • Safety Warning Lights

Specifications

Model FSC1806-1
Approximate Weight 2,833 lbs. (1,275 kg)
Working Width 15 ft. 0 in. (4.5 m)
Transport Width 16 ft. 1 in. (4.83 m)
Transport Height Dependent on Tractor Hitch Position
Overall Length 9 ft. 8 in. (2.9 m)
Drive Line 1,000 RPM
Gear Box 180 HP (138.24 kW)
Over Running Clutch Standard
Constant Velocity PTO Shaft Standard
Rotor RPM 1,630 RPM
Rotor SFM (Surface Feet per Minute) 10,300 SFM (3,139 SMM)
Knife Type Cup Type
Hitch Pull-Type With Hydraulic Lift
Tire Size 9.5L x 15-6 Ply Implement Rib
Auxiliary Wheel Kit Optional*
Center Cut Kit Optional
Hydraulic Cylinder Standard
Cylinder Hose Kit Standard
Safety Warning Lights and SMV Emblem Standard
Safety Chain KIt Standard
Horspower Requirements 5 to 10 HP per ft. (3.84 to 7.68 kW)
Recommended Operating Speed 3 to 6 MPH (5 to 10 km/h)
