Call UsAmerican Pneumatic Tools, Inc. APT 110

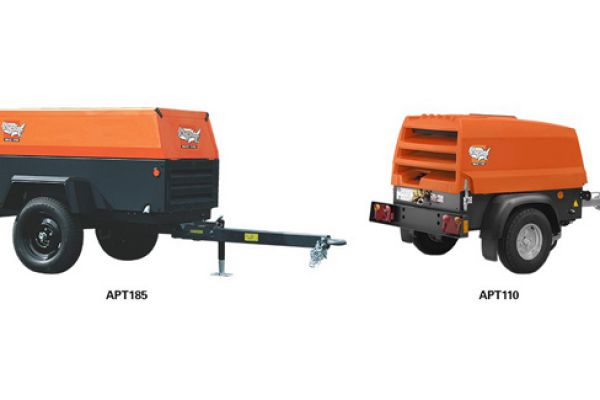

APT portable compressors APT 110
Overview:
With strong undercarriages and heavy-gauge bodies, APT portable compressors
are robust and durable. Just pull one to the worksite and get busy.
Features
- Portable: Lightweight and easy to transport.
- Powerful: Power two breakers with effortless ease.
- Tough: The canopy is made from extra tough polyethylene, protecting the working parts and ensuring your compressor looks and performs to its maximum, day in and day out.
Specifications
| Performance | APT 110 |
| Normal effective working pressure | 100 Psi (g) |
| Free air delivery | 110 CFM |
| Max. ambient temperature at sea level | 122 °F |
| Min. starting temperature | 14 °F |
| Min. starting temperature (cold start aid) | -4 °F |
| Engine | |
| Engine brand | Kubota |
| Engine model | D 902 T4F |
| Number of cylinders | 3 |
| Power output @ normal shaft speed | 24.8 HP |
| Full load rpm | 3600 rpm |
| Unload rpm | 2000 rpm |
| Engine oil | 0.95 US Gall. |
| Compressor oil | 1.45 US Gall. |
| Fuel tank | 7.35 US Gall. |
| Dimensions: box unit | |
| Length | 61 inch |
| Width | 42 inch |
| Height | 34 inch |
| Weight box | 970 lbs |
| Transport dimensions: undercarriage | |
| Length | 79 inch |
| Width | 48 inch |
| Height | 51 inch |
| Weight portable | 1100 lbs |
