Specializing in farm equipment sales, parts, and service.

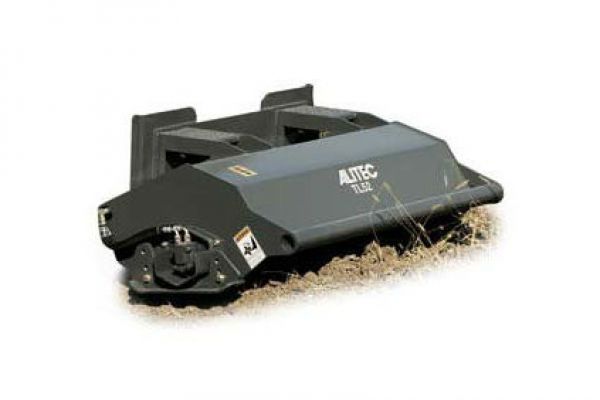

Woods TL52A

Double tap to zoom



Features

  • 52-inch cutting width
  • Direct drive hydraulic motors – no maintenance or adjustments necessary
  • Dual-drive motors power both ends – eliminating rotor twist
  • Recessed drive motors for easy maneuvering in tight spaces
  • Offset mounting covers right side loader tracks when operating in reverse
  • Bi-directional tine rotation for tilling in both forward and reverse

Specifications

Overall width 60" (1,524 mm)
Working width 52" (1,320.8 mm)
Working depth 6" (152.4 mm)
Overall height 31" (787.4 mm)
Number of tines 24
Tine rotation forward or reverse
Operating weight 510 lbs (232 kg)
Driveline (2) in - line hydraulic motors
Tine speed 74 - 247 rpm
Hydraulic flow requirement 12 - 40 gpm (45-151 lpm)
Hydraulic pressure requirement 1,800 - 3,000 psi (124-207 bar)
