Apply NowWoods PFW2242
Not a current model

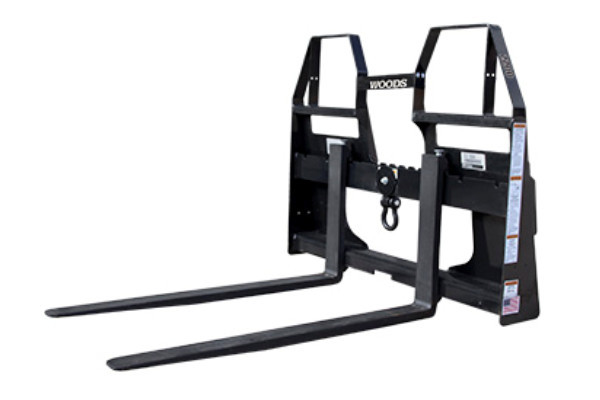

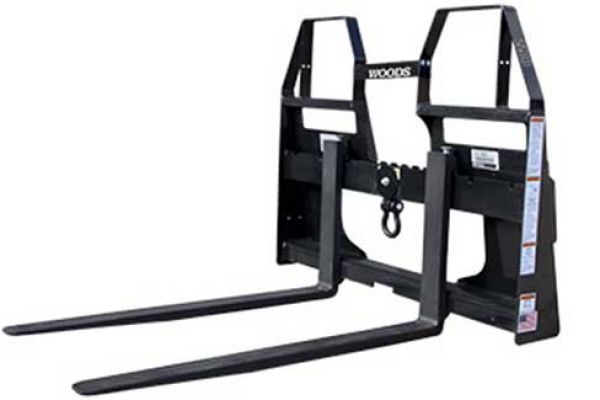

Pallet Forks PFW2242
Choose from a wide variety of styles to match your application. PF4000 & PF6000 series forks utilize certified forged steel tines for long life and the integral center load point allows for safe lifting and machine tie-down.
Features
- 42-inch fork length
- 2,200-pound fork capacity
- Walk-thru frame and low step offer easy access and optimum visibiity
- High back frame with movable walk-thru crossbar to fit your prime mover and application
- Standard clevis for lifting from a single, secure point on the frame with same lift capacity as the fork times.
- Compatible with Skid Steer (ISO 24410), John Deere® and Euro (ISO 23206) Quick Attach Systems
Specs
| Frame type | walk-thru with full frame option |
| Coupler system compaibility | skid steer | John Deere® | Euro |
| Operating weight | 275 lbs. skid steer | 255 lbs. John Deere® | 235 lbs. Euro |
| Working width | 42” (1,067 mm) |
| Fork capacity at 19.7" from tine face | 2,200 lbs. |
| Fork time dimensions (L x W x H) |
42" x 3.2" x 1.2" |
| Fork tine spread range | 12"-45" outside to outside |
| Fork tine type | double hook lock down (ISO Class 2A) |
| Clevis | standard |
